rdm.h File Reference

Detailed Description

Remote Device Management.

Include dependency graph for rdm.h:

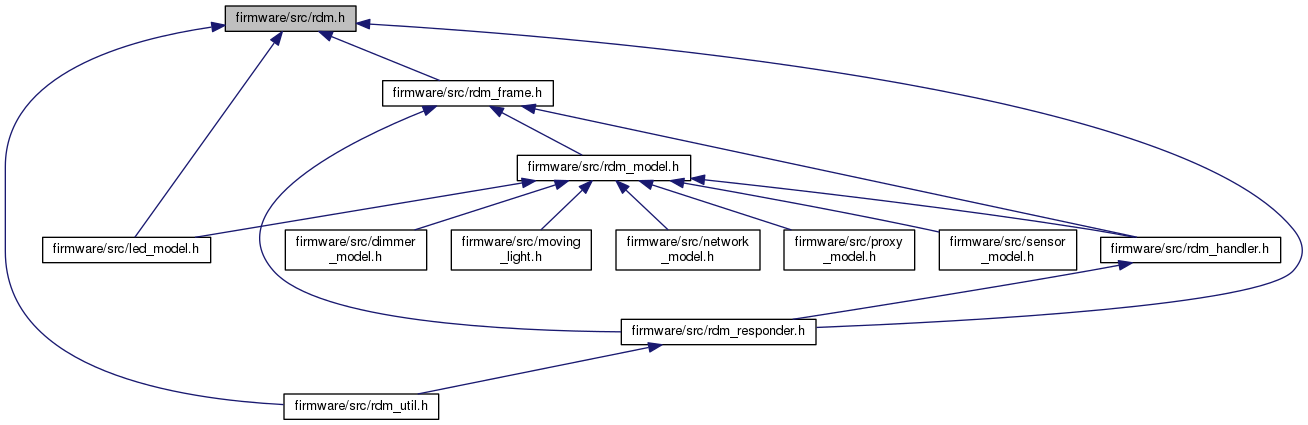

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Enumerations
enum	{ MAX_PRODUCT_DETAILS = 6 }
	The maximum number of product detail ids a responder can have.
enum	{ RDM_DEFAULT_STRING_SIZE = 32 }
	The size of the default strings used in RDM.
enum	{ RDM_LANGUAGE_STRING_SIZE = 2 }
	The size of the language strings used in RDM.
enum	{ DUB_RESPONSE_LENGTH = 24 }
	The size of a DUB response.
enum	{ RDM_MAX_FRAME_SIZE = 257 }
	The size of an RDM frame.
enum	{ MAX_PARAM_DATA_SIZE = 231 }
	Maximum size of RDM Parameter Data. More...
enum	{ SENSOR_SUPPORTS_RECORDING_MASK = 0x01 }
	The recording mask for the recorded value support bit field.
enum	{ SENSOR_SUPPORTS_LOWEST_HIGHEST_MASK = 0x02 }
	The lowest / highest mask for the recorded value support bit field.
enum	{ DNS_HOST_NAME_SIZE = 63 }
	The size of the DNS Host Name field from E1.37-2.
enum	{ DNS_DOMAIN_NAME_SIZE = 231 }
	The size of the DNS Domain Name field from E1.37-2.
enum	{ ETHERNET_HARDWARE_TYPE = 1, IPSEC_HARDWARE_TYPE = 31 }
	Interface hardware types. More...
enum	DHCPMode { DHCP_STATUS_INACTIVE = 0x00, DHCP_STATUS_ACTIVE = 0x01, DHCP_STATUS_UNKNOWN = 0x02 }
	DHCP Status.
enum	RDMCommandClass {   DISCOVERY_COMMAND = 0x10, DISCOVERY_COMMAND_RESPONSE = 0x11, GET_COMMAND = 0x20, GET_COMMAND_RESPONSE = 0x21,   SET_COMMAND = 0x30, SET_COMMAND_RESPONSE = 0x31 }
	RDM Command Classes from E1.20. More...
enum	RDMResponseType { ACK = 0x00, ACK_TIMER = 0x01, NACK_REASON = 0x02, ACK_OVERFLOW = 0x03 }
	RDM Command Classes from E1.20. More...
enum	RDMPid {   PID_DISC_UNIQUE_BRANCH = 0x0001, PID_DISC_MUTE = 0x0002, PID_DISC_UN_MUTE = 0x0003, PID_PROXIED_DEVICES = 0x0010,   PID_PROXIED_DEVICE_COUNT = 0x0011, PID_COMMS_STATUS = 0x0015, PID_QUEUED_MESSAGE = 0x0020, PID_STATUS_MESSAGES = 0x0030,   PID_STATUS_ID_DESCRIPTION = 0x0031, PID_CLEAR_STATUS_ID = 0x0032, PID_SUB_DEVICE_STATUS_REPORT_THRESHOLD = 0x0033, PID_SUPPORTED_PARAMETERS = 0x0050,   PID_PARAMETER_DESCRIPTION = 0x0051, PID_DEVICE_INFO = 0x0060, PID_PRODUCT_DETAIL_ID_LIST = 0x0070, PID_DEVICE_MODEL_DESCRIPTION = 0x0080,   PID_MANUFACTURER_LABEL = 0x0081, PID_DEVICE_LABEL = 0x0082, PID_FACTORY_DEFAULTS = 0x0090, PID_LANGUAGE_CAPABILITIES = 0x00a0,   PID_LANGUAGE = 0x00b0, PID_SOFTWARE_VERSION_LABEL = 0x00c0, PID_BOOT_SOFTWARE_VERSION_ID = 0x00c1, PID_BOOT_SOFTWARE_VERSION_LABEL = 0x00c2,   PID_DMX_PERSONALITY = 0x00e0, PID_DMX_PERSONALITY_DESCRIPTION = 0x00e1, PID_DMX_START_ADDRESS = 0x00f0, PID_SLOT_INFO = 0x0120,   PID_SLOT_DESCRIPTION = 0x0121, PID_DEFAULT_SLOT_VALUE = 0x0122, PID_SENSOR_DEFINITION = 0x0200, PID_SENSOR_VALUE = 0x0201,   PID_RECORD_SENSORS = 0x0202, PID_DEVICE_HOURS = 0x0400, PID_LAMP_HOURS = 0x0401, PID_LAMP_STRIKES = 0x0402,   PID_LAMP_STATE = 0x0403, PID_LAMP_ON_MODE = 0x0404, PID_DEVICE_POWER_CYCLES = 0x0405, PID_DISPLAY_INVERT = 0x0500,   PID_DISPLAY_LEVEL = 0x0501, PID_PAN_INVERT = 0x0600, PID_TILT_INVERT = 0x0601, PID_PAN_TILT_SWAP = 0x0602,   PID_REAL_TIME_CLOCK = 0x0603, PID_IDENTIFY_DEVICE = 0x1000, PID_RESET_DEVICE = 0x1001, PID_POWER_STATE = 0x1010,   PID_PERFORM_SELFTEST = 0x1020, PID_SELF_TEST_DESCRIPTION = 0x1021, PID_CAPTURE_PRESET = 0x1030, PID_PRESET_PLAYBACK = 0x1031,   PID_DMX_BLOCK_ADDRESS = 0x0140, PID_DMX_FAIL_MODE = 0x0141, PID_DMX_STARTUP_MODE = 0x0142, PID_DIMMER_INFO = 0x0340,   PID_MINIMUM_LEVEL = 0x0341, PID_MAXIMUM_LEVEL = 0x0342, PID_CURVE = 0x0343, PID_CURVE_DESCRIPTION = 0x0344,   PID_OUTPUT_RESPONSE_TIME = 0x0345, PID_OUTPUT_RESPONSE_TIME_DESCRIPTION = 0x0346, PID_MODULATION_FREQUENCY = 0x0347, PID_MODULATION_FREQUENCY_DESCRIPTION = 0x0348,   PID_BURN_IN = 0x0440, PID_LOCK_PIN = 0x0640, PID_LOCK_STATE = 0x0641, PID_LOCK_STATE_DESCRIPTION = 0x0642,   PID_IDENTIFY_MODE = 0x1040, PID_PRESET_INFO = 0x1041, PID_PRESET_STATUS = 0x1042, PID_PRESET_MERGEMODE = 0x1043,   PID_POWER_ON_SELF_TEST = 0x1044, PID_LIST_INTERFACES = 0x0700, PID_INTERFACE_LABEL = 0x0701, PID_INTERFACE_HARDWARE_ADDRESS_TYPE1 = 0x0702,   PID_IPV4_DHCP_MODE = 0x0703, PID_IPV4_ZEROCONF_MODE = 0x0704, PID_IPV4_CURRENT_ADDRESS = 0x0705, PID_IPV4_STATIC_ADDRESS = 0x0706,   PID_INTERFACE_RENEW_DHCP = 0x0707, PID_INTERFACE_RELEASE_DHCP = 0x0708, PID_INTERFACE_APPLY_CONFIGURATION = 0x0709, PID_IPV4_DEFAULT_ROUTE = 0x070a,   PID_DNS_NAME_SERVER = 0x070b, PID_DNS_HOSTNAME = 0x070c, PID_DNS_DOMAIN_NAME = 0x070d }
	RDM Parameter IDs. More...
enum	OpenLightingManufacturerPID { PID_DEVICE_MODEL = 0x8002, PID_DEVICE_MODEL_LIST = 0x8003, PID_PIXEL_TYPE = 0x8005, PID_PIXEL_COUNT = 0x8006 }
	Open Lighting Project manufacturer PIDs.
enum	RDMNackReason {   NR_UNKNOWN_PID = 0x0000, NR_FORMAT_ERROR = 0x0001, NR_HARDWARE_FAULT = 0x0002, NR_PROXY_REJECT = 0x0003,   NR_WRITE_PROTECT = 0x0004, NR_UNSUPPORTED_COMMAND_CLASS = 0x0005, NR_DATA_OUT_OF_RANGE = 0x0006, NR_BUFFER_FULL = 0x0007,   NR_PACKET_SIZE_UNSUPPORTED = 0x0008, NR_SUB_DEVICE_OUT_OF_RANGE = 0x0009, NR_PROXY_BUFFER_FULL = 0x000a, NR_ACTION_NOT_SUPPORTED = 0x000b,   NR_ENDPOINT_NUMBER_INVALID = 0x0011 }
	RDM NACK reason codes from E1.20. More...
enum	RDMStatusType {   STATUS_NONE = 0x0, STATUS_GET_LAST_MESSAGE = 0x1, STATUS_ADVISORY = 0x2, STATUS_WARNING = 0x3,   STATUS_ERROR = 0x4, STATUS_ADVISORY_CLEARED = 0x12, STATUS_WARNING_CLEARED = 0x13, STATUS_ERROR_CLEARED = 0x14 }
enum	__attribute__ {   PRODUCT_CATEGORY_NOT_DECLARED = 0x0000, PRODUCT_CATEGORY_FIXTURE = 0x0100, PRODUCT_CATEGORY_FIXTURE_FIXED = 0x0101, PRODUCT_CATEGORY_FIXTURE_MOVING_YOKE = 0x0102,   PRODUCT_CATEGORY_FIXTURE_MOVING_MIRROR = 0x0103, PRODUCT_CATEGORY_FIXTURE_OTHER = 0x01ff, PRODUCT_CATEGORY_FIXTURE_ACCESSORY = 0x0200, PRODUCT_CATEGORY_FIXTURE_ACCESSORY_COLOR = 0x0201,   PRODUCT_CATEGORY_FIXTURE_ACCESSORY_YOKE = 0x0202, PRODUCT_CATEGORY_FIXTURE_ACCESSORY_MIRROR = 0x0203, PRODUCT_CATEGORY_FIXTURE_ACCESSORY_EFFECT = 0x0204, PRODUCT_CATEGORY_FIXTURE_ACCESSORY_BEAM = 0x0205,   PRODUCT_CATEGORY_FIXTURE_ACCESSORY_OTHER = 0x02ff, PRODUCT_CATEGORY_PROJECTOR = 0x0300, PRODUCT_CATEGORY_PROJECTOR_FIXED = 0x0301, PRODUCT_CATEGORY_PROJECTOR_MOVING_YOKE = 0x0302,   PRODUCT_CATEGORY_PROJECTOR_MOVING_MIRROR = 0x0303, PRODUCT_CATEGORY_PROJECTOR_OTHER = 0x03ff, PRODUCT_CATEGORY_ATMOSPHERIC = 0x0400, PRODUCT_CATEGORY_ATMOSPHERIC_EFFECT = 0x0401,   PRODUCT_CATEGORY_ATMOSPHERIC_PYRO = 0x0402, PRODUCT_CATEGORY_ATMOSPHERIC_OTHER = 0x04ff, PRODUCT_CATEGORY_DIMMER = 0x0500, PRODUCT_CATEGORY_DIMMER_AC_INCANDESCENT = 0x0501,   PRODUCT_CATEGORY_DIMMER_AC_FLUORESCENT = 0x0502, PRODUCT_CATEGORY_DIMMER_AC_COLDCATHODE = 0x0503, PRODUCT_CATEGORY_DIMMER_AC_NONDIM = 0x0504, PRODUCT_CATEGORY_DIMMER_AC_ELV = 0x0505,   PRODUCT_CATEGORY_DIMMER_AC_OTHER = 0x0506, PRODUCT_CATEGORY_DIMMER_DC_LEVEL = 0x0507, PRODUCT_CATEGORY_DIMMER_DC_PWM = 0x0508, PRODUCT_CATEGORY_DIMMER_CS_LED = 0x0509,   PRODUCT_CATEGORY_DIMMER_OTHER = 0x05ff, PRODUCT_CATEGORY_POWER = 0x0600, PRODUCT_CATEGORY_POWER_CONTROL = 0x0601, PRODUCT_CATEGORY_POWER_SOURCE = 0x0602,   PRODUCT_CATEGORY_POWER_OTHER = 0x06ff, PRODUCT_CATEGORY_SCENIC = 0x0700, PRODUCT_CATEGORY_SCENIC_DRIVE = 0x0701, PRODUCT_CATEGORY_SCENIC_OTHER = 0x07ff,   PRODUCT_CATEGORY_DATA = 0x0800, PRODUCT_CATEGORY_DATA_DISTRIBUTION = 0x0801, PRODUCT_CATEGORY_DATA_CONVERSION = 0x0802, PRODUCT_CATEGORY_DATA_OTHER = 0x08ff,   PRODUCT_CATEGORY_AV = 0x0900, PRODUCT_CATEGORY_AV_AUDIO = 0x0901, PRODUCT_CATEGORY_AV_VIDEO = 0x0902, PRODUCT_CATEGORY_AV_OTHER = 0x09ff,   PRODUCT_CATEGORY_MONITOR = 0x0a00, PRODUCT_CATEGORY_MONITOR_ACLINEPOWER = 0x0a01, PRODUCT_CATEGORY_MONITOR_DCPOWER = 0x0a02, PRODUCT_CATEGORY_MONITOR_ENVIRONMENTAL = 0x0a03,   PRODUCT_CATEGORY_MONITOR_OTHER = 0x0aff, PRODUCT_CATEGORY_CONTROL = 0x7000, PRODUCT_CATEGORY_CONTROL_CONTROLLER = 0x7001, PRODUCT_CATEGORY_CONTROL_BACKUPDEVICE = 0x7002,   PRODUCT_CATEGORY_CONTROL_OTHER = 0x70ff, PRODUCT_CATEGORY_TEST = 0x7100, PRODUCT_CATEGORY_TEST_EQUIPMENT = 0x7101, PRODUCT_CATEGORY_TEST_EQUIPMENT_OTHER = 0x71ff,   PRODUCT_CATEGORY_OTHER = 0x7fff, PRODUCT_DETAIL_NOT_DECLARED = 0x0000, PRODUCT_DETAIL_ARC = 0x0001, PRODUCT_DETAIL_METAL_HALIDE = 0x0002,   PRODUCT_DETAIL_INCANDESCENT = 0x0003, PRODUCT_DETAIL_LED = 0x0004, PRODUCT_DETAIL_FLUORESCENT = 0x0005, PRODUCT_DETAIL_COLDCATHODE = 0x0006,   PRODUCT_DETAIL_ELECTROLUMINESCENT = 0x0007, PRODUCT_DETAIL_LASER = 0x0008, PRODUCT_DETAIL_FLASHTUBE = 0x0009, PRODUCT_DETAIL_COLORSCROLLER = 0x0100,   PRODUCT_DETAIL_COLORWHEEL = 0x0101, PRODUCT_DETAIL_COLORCHANGE = 0x0102, PRODUCT_DETAIL_IRIS_DOUSER = 0x0103, PRODUCT_DETAIL_DIMMING_SHUTTER = 0x0104,   PRODUCT_DETAIL_PROFILE_SHUTTER = 0x0105, PRODUCT_DETAIL_BARNDOOR_SHUTTER = 0x0106, PRODUCT_DETAIL_EFFECTS_DISC = 0x0107, PRODUCT_DETAIL_GOBO_ROTATOR = 0x0108,   PRODUCT_DETAIL_VIDEO = 0x0200, PRODUCT_DETAIL_SLIDE = 0x0201, PRODUCT_DETAIL_FILM = 0x0202, PRODUCT_DETAIL_OILWHEEL = 0x0203,   PRODUCT_DETAIL_LCDGATE = 0x0204, PRODUCT_DETAIL_FOGGER_GLYCOL = 0x0300, PRODUCT_DETAIL_FOGGER_MINERALOIL = 0x0301, PRODUCT_DETAIL_FOGGER_WATER = 0x0302,   PRODUCT_DETAIL_CO2 = 0x0303, PRODUCT_DETAIL_LN2 = 0x0304, PRODUCT_DETAIL_BUBBLE = 0x0305, PRODUCT_DETAIL_FLAME_PROPANE = 0x0306,   PRODUCT_DETAIL_FLAME_OTHER = 0x0307, PRODUCT_DETAIL_OLEFACTORY_STIMULATOR = 0x0308, PRODUCT_DETAIL_SNOW = 0x0309, PRODUCT_DETAIL_WATER_JET = 0x030a,   PRODUCT_DETAIL_WIND = 0x030b, PRODUCT_DETAIL_CONFETTI = 0x030c, PRODUCT_DETAIL_HAZARD = 0x030d, PRODUCT_DETAIL_PHASE_CONTROL = 0x0400,   PRODUCT_DETAIL_REVERSE_PHASE_CONTROL = 0x0401, PRODUCT_DETAIL_SINE = 0x0402, PRODUCT_DETAIL_PWM = 0x0403, PRODUCT_DETAIL_DC = 0x0404,   PRODUCT_DETAIL_HFBALLAST = 0x0405, PRODUCT_DETAIL_HFHV_NEONBALLAST = 0x0406, PRODUCT_DETAIL_HFHV_EL = 0x0407, PRODUCT_DETAIL_MHR_BALLAST = 0x0408,   PRODUCT_DETAIL_BITANGLE_MODULATION = 0x0409, PRODUCT_DETAIL_FREQUENCY_MODULATION = 0x040a, PRODUCT_DETAIL_HIGHFREQUENCY_12V = 0x040b, PRODUCT_DETAIL_RELAY_MECHANICAL = 0x040c,   PRODUCT_DETAIL_RELAY_ELECTRONIC = 0x040d, PRODUCT_DETAIL_SWITCH_ELECTRONIC = 0x040e, PRODUCT_DETAIL_CONTACTOR = 0x040f, PRODUCT_DETAIL_MIRRORBALL_ROTATOR = 0x0500,   PRODUCT_DETAIL_OTHER_ROTATOR = 0x0501, PRODUCT_DETAIL_KABUKI_DROP = 0x0502, PRODUCT_DETAIL_CURTAIN = 0x0503, PRODUCT_DETAIL_LINESET = 0x0504,   PRODUCT_DETAIL_MOTOR_CONTROL = 0x0505, PRODUCT_DETAIL_DAMPER_CONTROL = 0x0506, PRODUCT_DETAIL_SPLITTER = 0x0600, PRODUCT_DETAIL_ETHERNET_NODE = 0x0601,   PRODUCT_DETAIL_MERGE = 0x0602, PRODUCT_DETAIL_DATAPATCH = 0x0603, PRODUCT_DETAIL_WIRELESS_LINK = 0x0604, PRODUCT_DETAIL_PROTOCOL_CONVERTER = 0x0701,   PRODUCT_DETAIL_ANALOG_DEMULTIPLEX = 0x0702, PRODUCT_DETAIL_ANALOG_MULTIPLEX = 0x0703, PRODUCT_DETAIL_SWITCH_PANEL = 0x0704, PRODUCT_DETAIL_ROUTER = 0x0800,   PRODUCT_DETAIL_FADER = 0x0801, PRODUCT_DETAIL_MIXER = 0x0802, PRODUCT_DETAIL_CHANGEOVER_MANUAL = 0x0900, PRODUCT_DETAIL_CHANGEOVER_AUTO = 0x0901,   PRODUCT_DETAIL_TEST = 0x0902, PRODUCT_DETAIL_GFI_RCD = 0x0a00, PRODUCT_DETAIL_BATTERY = 0x0a01, PRODUCT_DETAIL_CONTROLLABLE_BREAKER = 0x0a02,   PRODUCT_DETAIL_OTHER = 0x7fff, SENSOR_TEMPERATURE = 0x00, SENSOR_VOLTAGE = 0x01, SENSOR_CURRENT = 0x02,   SENSOR_FREQUENCY = 0x03, SENSOR_RESISTANCE = 0x04, SENSOR_POWER = 0x05, SENSOR_MASS = 0x06,   SENSOR_LENGTH = 0x07, SENSOR_AREA = 0x08, SENSOR_VOLUME = 0x09, SENSOR_DENSITY = 0x0a,   SENSOR_VELOCITY = 0x0b, SENSOR_ACCELERATION = 0x0c, SENSOR_FORCE = 0x0d, SENSOR_ENERGY = 0x0e,   SENSOR_PRESSURE = 0x0f, SENSOR_TIME = 0x10, SENSOR_ANGLE = 0x11, SENSOR_POSITION_X = 0x12,   SENSOR_POSITION_Y = 0x13, SENSOR_POSITION_Z = 0x14, SENSOR_ANGULAR_VELOCITY = 0x15, SENSOR_LUMINOUS_INTENSITY = 0x16,   SENSOR_LUMINOUS_FLUX = 0x17, SENSOR_ILLUMINANCE = 0x18, SENSOR_CHROMINANCE_RED = 0x19, SENSOR_CHROMINANCE_GREEN = 0x1a,   SENSOR_CHROMINANCE_BLUE = 0x1b, SENSOR_CONTACTS = 0x1c, SENSOR_MEMORY = 0x1d, SENSOR_ITEMS = 0x1e,   SENSOR_HUMIDITY = 0x1f, SENSOR_COUNTER_16BIT = 0x20, SENSOR_OTHER = 0x7f, UNITS_NONE = 0x00,   UNITS_CENTIGRADE = 0x01, UNITS_VOLTS_DC = 0x02, UNITS_VOLTS_AC_PEAK = 0x03, UNITS_VOLTS_AC_RMS = 0x04,   UNITS_AMPERE_DC = 0x05, UNITS_AMPERE_AC_PEAK = 0x06, UNITS_AMPERE_AC_RMS = 0x07, UNITS_HERTZ = 0x08,   UNITS_OHM = 0x09, UNITS_WATT = 0x0a, UNITS_KILOGRAM = 0x0b, UNITS_METERS = 0x0c,   UNITS_METERS_SQUARED = 0x0d, UNITS_METERS_CUBED = 0x0e, UNITS_KILOGRAMMES_PER_METER_CUBED = 0x0f, UNITS_METERS_PER_SECOND = 0x10,   UNITS_METERS_PER_SECOND_SQUARED = 0x11, UNITS_NEWTON = 0x12, UNITS_JOULE = 0x13, UNITS_PASCAL = 0x14,   UNITS_SECOND = 0x15, UNITS_DEGREE = 0x16, UNITS_STERADIAN = 0x17, UNITS_CANDELA = 0x18,   UNITS_LUMEN = 0x19, UNITS_LUX = 0x1a, UNITS_IRE = 0x1b, UNITS_BYTE = 0x1c,   PREFIX_NONE = 0x00, PREFIX_DECI = 0x01, PREFIX_CENTI = 0x02, PREFIX_MILLI = 0x03,   PREFIX_MICRO = 0x04, PREFIX_NANO = 0x05, PREFIX_PICO = 0x06, PREFIX_FEMTO = 0x07,   PREFIX_ATTO = 0x08, PREFIX_ZEPTO = 0x09, PREFIX_YOCTO = 0x0a, PREFIX_DECA = 0x11,   PREFIX_HECTO = 0x12, PREFIX_KILO = 0x13, PREFIX_MEGA = 0x14, PREFIX_GIGA = 0x15,   PREFIX_TERA = 0x16, PREFIX_PETA = 0x17, PREFIX_EXA = 0x18, PREFIX_ZETTA = 0x19,   PREFIX_YOTTA = 0x1a }
	RDM Product Category codes from E1.20. More...
enum	__attribute__ {   PRODUCT_CATEGORY_NOT_DECLARED = 0x0000, PRODUCT_CATEGORY_FIXTURE = 0x0100, PRODUCT_CATEGORY_FIXTURE_FIXED = 0x0101, PRODUCT_CATEGORY_FIXTURE_MOVING_YOKE = 0x0102,   PRODUCT_CATEGORY_FIXTURE_MOVING_MIRROR = 0x0103, PRODUCT_CATEGORY_FIXTURE_OTHER = 0x01ff, PRODUCT_CATEGORY_FIXTURE_ACCESSORY = 0x0200, PRODUCT_CATEGORY_FIXTURE_ACCESSORY_COLOR = 0x0201,   PRODUCT_CATEGORY_FIXTURE_ACCESSORY_YOKE = 0x0202, PRODUCT_CATEGORY_FIXTURE_ACCESSORY_MIRROR = 0x0203, PRODUCT_CATEGORY_FIXTURE_ACCESSORY_EFFECT = 0x0204, PRODUCT_CATEGORY_FIXTURE_ACCESSORY_BEAM = 0x0205,   PRODUCT_CATEGORY_FIXTURE_ACCESSORY_OTHER = 0x02ff, PRODUCT_CATEGORY_PROJECTOR = 0x0300, PRODUCT_CATEGORY_PROJECTOR_FIXED = 0x0301, PRODUCT_CATEGORY_PROJECTOR_MOVING_YOKE = 0x0302,   PRODUCT_CATEGORY_PROJECTOR_MOVING_MIRROR = 0x0303, PRODUCT_CATEGORY_PROJECTOR_OTHER = 0x03ff, PRODUCT_CATEGORY_ATMOSPHERIC = 0x0400, PRODUCT_CATEGORY_ATMOSPHERIC_EFFECT = 0x0401,   PRODUCT_CATEGORY_ATMOSPHERIC_PYRO = 0x0402, PRODUCT_CATEGORY_ATMOSPHERIC_OTHER = 0x04ff, PRODUCT_CATEGORY_DIMMER = 0x0500, PRODUCT_CATEGORY_DIMMER_AC_INCANDESCENT = 0x0501,   PRODUCT_CATEGORY_DIMMER_AC_FLUORESCENT = 0x0502, PRODUCT_CATEGORY_DIMMER_AC_COLDCATHODE = 0x0503, PRODUCT_CATEGORY_DIMMER_AC_NONDIM = 0x0504, PRODUCT_CATEGORY_DIMMER_AC_ELV = 0x0505,   PRODUCT_CATEGORY_DIMMER_AC_OTHER = 0x0506, PRODUCT_CATEGORY_DIMMER_DC_LEVEL = 0x0507, PRODUCT_CATEGORY_DIMMER_DC_PWM = 0x0508, PRODUCT_CATEGORY_DIMMER_CS_LED = 0x0509,   PRODUCT_CATEGORY_DIMMER_OTHER = 0x05ff, PRODUCT_CATEGORY_POWER = 0x0600, PRODUCT_CATEGORY_POWER_CONTROL = 0x0601, PRODUCT_CATEGORY_POWER_SOURCE = 0x0602,   PRODUCT_CATEGORY_POWER_OTHER = 0x06ff, PRODUCT_CATEGORY_SCENIC = 0x0700, PRODUCT_CATEGORY_SCENIC_DRIVE = 0x0701, PRODUCT_CATEGORY_SCENIC_OTHER = 0x07ff,   PRODUCT_CATEGORY_DATA = 0x0800, PRODUCT_CATEGORY_DATA_DISTRIBUTION = 0x0801, PRODUCT_CATEGORY_DATA_CONVERSION = 0x0802, PRODUCT_CATEGORY_DATA_OTHER = 0x08ff,   PRODUCT_CATEGORY_AV = 0x0900, PRODUCT_CATEGORY_AV_AUDIO = 0x0901, PRODUCT_CATEGORY_AV_VIDEO = 0x0902, PRODUCT_CATEGORY_AV_OTHER = 0x09ff,   PRODUCT_CATEGORY_MONITOR = 0x0a00, PRODUCT_CATEGORY_MONITOR_ACLINEPOWER = 0x0a01, PRODUCT_CATEGORY_MONITOR_DCPOWER = 0x0a02, PRODUCT_CATEGORY_MONITOR_ENVIRONMENTAL = 0x0a03,   PRODUCT_CATEGORY_MONITOR_OTHER = 0x0aff, PRODUCT_CATEGORY_CONTROL = 0x7000, PRODUCT_CATEGORY_CONTROL_CONTROLLER = 0x7001, PRODUCT_CATEGORY_CONTROL_BACKUPDEVICE = 0x7002,   PRODUCT_CATEGORY_CONTROL_OTHER = 0x70ff, PRODUCT_CATEGORY_TEST = 0x7100, PRODUCT_CATEGORY_TEST_EQUIPMENT = 0x7101, PRODUCT_CATEGORY_TEST_EQUIPMENT_OTHER = 0x71ff,   PRODUCT_CATEGORY_OTHER = 0x7fff, PRODUCT_DETAIL_NOT_DECLARED = 0x0000, PRODUCT_DETAIL_ARC = 0x0001, PRODUCT_DETAIL_METAL_HALIDE = 0x0002,   PRODUCT_DETAIL_INCANDESCENT = 0x0003, PRODUCT_DETAIL_LED = 0x0004, PRODUCT_DETAIL_FLUORESCENT = 0x0005, PRODUCT_DETAIL_COLDCATHODE = 0x0006,   PRODUCT_DETAIL_ELECTROLUMINESCENT = 0x0007, PRODUCT_DETAIL_LASER = 0x0008, PRODUCT_DETAIL_FLASHTUBE = 0x0009, PRODUCT_DETAIL_COLORSCROLLER = 0x0100,   PRODUCT_DETAIL_COLORWHEEL = 0x0101, PRODUCT_DETAIL_COLORCHANGE = 0x0102, PRODUCT_DETAIL_IRIS_DOUSER = 0x0103, PRODUCT_DETAIL_DIMMING_SHUTTER = 0x0104,   PRODUCT_DETAIL_PROFILE_SHUTTER = 0x0105, PRODUCT_DETAIL_BARNDOOR_SHUTTER = 0x0106, PRODUCT_DETAIL_EFFECTS_DISC = 0x0107, PRODUCT_DETAIL_GOBO_ROTATOR = 0x0108,   PRODUCT_DETAIL_VIDEO = 0x0200, PRODUCT_DETAIL_SLIDE = 0x0201, PRODUCT_DETAIL_FILM = 0x0202, PRODUCT_DETAIL_OILWHEEL = 0x0203,   PRODUCT_DETAIL_LCDGATE = 0x0204, PRODUCT_DETAIL_FOGGER_GLYCOL = 0x0300, PRODUCT_DETAIL_FOGGER_MINERALOIL = 0x0301, PRODUCT_DETAIL_FOGGER_WATER = 0x0302,   PRODUCT_DETAIL_CO2 = 0x0303, PRODUCT_DETAIL_LN2 = 0x0304, PRODUCT_DETAIL_BUBBLE = 0x0305, PRODUCT_DETAIL_FLAME_PROPANE = 0x0306,   PRODUCT_DETAIL_FLAME_OTHER = 0x0307, PRODUCT_DETAIL_OLEFACTORY_STIMULATOR = 0x0308, PRODUCT_DETAIL_SNOW = 0x0309, PRODUCT_DETAIL_WATER_JET = 0x030a,   PRODUCT_DETAIL_WIND = 0x030b, PRODUCT_DETAIL_CONFETTI = 0x030c, PRODUCT_DETAIL_HAZARD = 0x030d, PRODUCT_DETAIL_PHASE_CONTROL = 0x0400,   PRODUCT_DETAIL_REVERSE_PHASE_CONTROL = 0x0401, PRODUCT_DETAIL_SINE = 0x0402, PRODUCT_DETAIL_PWM = 0x0403, PRODUCT_DETAIL_DC = 0x0404,   PRODUCT_DETAIL_HFBALLAST = 0x0405, PRODUCT_DETAIL_HFHV_NEONBALLAST = 0x0406, PRODUCT_DETAIL_HFHV_EL = 0x0407, PRODUCT_DETAIL_MHR_BALLAST = 0x0408,   PRODUCT_DETAIL_BITANGLE_MODULATION = 0x0409, PRODUCT_DETAIL_FREQUENCY_MODULATION = 0x040a, PRODUCT_DETAIL_HIGHFREQUENCY_12V = 0x040b, PRODUCT_DETAIL_RELAY_MECHANICAL = 0x040c,   PRODUCT_DETAIL_RELAY_ELECTRONIC = 0x040d, PRODUCT_DETAIL_SWITCH_ELECTRONIC = 0x040e, PRODUCT_DETAIL_CONTACTOR = 0x040f, PRODUCT_DETAIL_MIRRORBALL_ROTATOR = 0x0500,   PRODUCT_DETAIL_OTHER_ROTATOR = 0x0501, PRODUCT_DETAIL_KABUKI_DROP = 0x0502, PRODUCT_DETAIL_CURTAIN = 0x0503, PRODUCT_DETAIL_LINESET = 0x0504,   PRODUCT_DETAIL_MOTOR_CONTROL = 0x0505, PRODUCT_DETAIL_DAMPER_CONTROL = 0x0506, PRODUCT_DETAIL_SPLITTER = 0x0600, PRODUCT_DETAIL_ETHERNET_NODE = 0x0601,   PRODUCT_DETAIL_MERGE = 0x0602, PRODUCT_DETAIL_DATAPATCH = 0x0603, PRODUCT_DETAIL_WIRELESS_LINK = 0x0604, PRODUCT_DETAIL_PROTOCOL_CONVERTER = 0x0701,   PRODUCT_DETAIL_ANALOG_DEMULTIPLEX = 0x0702, PRODUCT_DETAIL_ANALOG_MULTIPLEX = 0x0703, PRODUCT_DETAIL_SWITCH_PANEL = 0x0704, PRODUCT_DETAIL_ROUTER = 0x0800,   PRODUCT_DETAIL_FADER = 0x0801, PRODUCT_DETAIL_MIXER = 0x0802, PRODUCT_DETAIL_CHANGEOVER_MANUAL = 0x0900, PRODUCT_DETAIL_CHANGEOVER_AUTO = 0x0901,   PRODUCT_DETAIL_TEST = 0x0902, PRODUCT_DETAIL_GFI_RCD = 0x0a00, PRODUCT_DETAIL_BATTERY = 0x0a01, PRODUCT_DETAIL_CONTROLLABLE_BREAKER = 0x0a02,   PRODUCT_DETAIL_OTHER = 0x7fff, SENSOR_TEMPERATURE = 0x00, SENSOR_VOLTAGE = 0x01, SENSOR_CURRENT = 0x02,   SENSOR_FREQUENCY = 0x03, SENSOR_RESISTANCE = 0x04, SENSOR_POWER = 0x05, SENSOR_MASS = 0x06,   SENSOR_LENGTH = 0x07, SENSOR_AREA = 0x08, SENSOR_VOLUME = 0x09, SENSOR_DENSITY = 0x0a,   SENSOR_VELOCITY = 0x0b, SENSOR_ACCELERATION = 0x0c, SENSOR_FORCE = 0x0d, SENSOR_ENERGY = 0x0e,   SENSOR_PRESSURE = 0x0f, SENSOR_TIME = 0x10, SENSOR_ANGLE = 0x11, SENSOR_POSITION_X = 0x12,   SENSOR_POSITION_Y = 0x13, SENSOR_POSITION_Z = 0x14, SENSOR_ANGULAR_VELOCITY = 0x15, SENSOR_LUMINOUS_INTENSITY = 0x16,   SENSOR_LUMINOUS_FLUX = 0x17, SENSOR_ILLUMINANCE = 0x18, SENSOR_CHROMINANCE_RED = 0x19, SENSOR_CHROMINANCE_GREEN = 0x1a,   SENSOR_CHROMINANCE_BLUE = 0x1b, SENSOR_CONTACTS = 0x1c, SENSOR_MEMORY = 0x1d, SENSOR_ITEMS = 0x1e,   SENSOR_HUMIDITY = 0x1f, SENSOR_COUNTER_16BIT = 0x20, SENSOR_OTHER = 0x7f, UNITS_NONE = 0x00,   UNITS_CENTIGRADE = 0x01, UNITS_VOLTS_DC = 0x02, UNITS_VOLTS_AC_PEAK = 0x03, UNITS_VOLTS_AC_RMS = 0x04,   UNITS_AMPERE_DC = 0x05, UNITS_AMPERE_AC_PEAK = 0x06, UNITS_AMPERE_AC_RMS = 0x07, UNITS_HERTZ = 0x08,   UNITS_OHM = 0x09, UNITS_WATT = 0x0a, UNITS_KILOGRAM = 0x0b, UNITS_METERS = 0x0c,   UNITS_METERS_SQUARED = 0x0d, UNITS_METERS_CUBED = 0x0e, UNITS_KILOGRAMMES_PER_METER_CUBED = 0x0f, UNITS_METERS_PER_SECOND = 0x10,   UNITS_METERS_PER_SECOND_SQUARED = 0x11, UNITS_NEWTON = 0x12, UNITS_JOULE = 0x13, UNITS_PASCAL = 0x14,   UNITS_SECOND = 0x15, UNITS_DEGREE = 0x16, UNITS_STERADIAN = 0x17, UNITS_CANDELA = 0x18,   UNITS_LUMEN = 0x19, UNITS_LUX = 0x1a, UNITS_IRE = 0x1b, UNITS_BYTE = 0x1c,   PREFIX_NONE = 0x00, PREFIX_DECI = 0x01, PREFIX_CENTI = 0x02, PREFIX_MILLI = 0x03,   PREFIX_MICRO = 0x04, PREFIX_NANO = 0x05, PREFIX_PICO = 0x06, PREFIX_FEMTO = 0x07,   PREFIX_ATTO = 0x08, PREFIX_ZEPTO = 0x09, PREFIX_YOCTO = 0x0a, PREFIX_DECA = 0x11,   PREFIX_HECTO = 0x12, PREFIX_KILO = 0x13, PREFIX_MEGA = 0x14, PREFIX_GIGA = 0x15,   PREFIX_TERA = 0x16, PREFIX_PETA = 0x17, PREFIX_EXA = 0x18, PREFIX_ZETTA = 0x19,   PREFIX_YOTTA = 0x1a }
enum	RDMLampState {   LAMP_OFF = 0x00, LAMP_ON = 0x01, LAMP_STRIKE = 0x02, LAMP_STANDBY = 0x03,   LAMP_NOT_PRESENT = 0x04, LAMP_ERROR = 0x7f }
enum	RDMLampMode { LAMP_ON_MODE_OFF = 0x00, LAMP_ON_MODE_DMX = 0x01, LAMP_ON_MODE_ON = 0x02, LAMP_ON_MODE_ON_AFTER_CAL = 0x03 }
enum	RDMDisplayInvert { DISPLAY_INVERT_OFF = 0x00, DISPLAY_INVERT_ON = 0x01, DISPLAY_INVERT_AUTO = 0x02 }
enum	RDMSelfTest { SELF_TEST_OFF = 0x00, SELF_TEST_ALL = 0xff }
enum	RDMPowerState { POWER_STATE_FULL_OFF = 0x00, POWER_STATE_SHUTDOWN = 0x01, POWER_STATE_STANDBY = 0x02, POWER_STATE_NORMAL = 0xff }
enum	__attribute__ {   PRODUCT_CATEGORY_NOT_DECLARED = 0x0000, PRODUCT_CATEGORY_FIXTURE = 0x0100, PRODUCT_CATEGORY_FIXTURE_FIXED = 0x0101, PRODUCT_CATEGORY_FIXTURE_MOVING_YOKE = 0x0102,   PRODUCT_CATEGORY_FIXTURE_MOVING_MIRROR = 0x0103, PRODUCT_CATEGORY_FIXTURE_OTHER = 0x01ff, PRODUCT_CATEGORY_FIXTURE_ACCESSORY = 0x0200, PRODUCT_CATEGORY_FIXTURE_ACCESSORY_COLOR = 0x0201,   PRODUCT_CATEGORY_FIXTURE_ACCESSORY_YOKE = 0x0202, PRODUCT_CATEGORY_FIXTURE_ACCESSORY_MIRROR = 0x0203, PRODUCT_CATEGORY_FIXTURE_ACCESSORY_EFFECT = 0x0204, PRODUCT_CATEGORY_FIXTURE_ACCESSORY_BEAM = 0x0205,   PRODUCT_CATEGORY_FIXTURE_ACCESSORY_OTHER = 0x02ff, PRODUCT_CATEGORY_PROJECTOR = 0x0300, PRODUCT_CATEGORY_PROJECTOR_FIXED = 0x0301, PRODUCT_CATEGORY_PROJECTOR_MOVING_YOKE = 0x0302,   PRODUCT_CATEGORY_PROJECTOR_MOVING_MIRROR = 0x0303, PRODUCT_CATEGORY_PROJECTOR_OTHER = 0x03ff, PRODUCT_CATEGORY_ATMOSPHERIC = 0x0400, PRODUCT_CATEGORY_ATMOSPHERIC_EFFECT = 0x0401,   PRODUCT_CATEGORY_ATMOSPHERIC_PYRO = 0x0402, PRODUCT_CATEGORY_ATMOSPHERIC_OTHER = 0x04ff, PRODUCT_CATEGORY_DIMMER = 0x0500, PRODUCT_CATEGORY_DIMMER_AC_INCANDESCENT = 0x0501,   PRODUCT_CATEGORY_DIMMER_AC_FLUORESCENT = 0x0502, PRODUCT_CATEGORY_DIMMER_AC_COLDCATHODE = 0x0503, PRODUCT_CATEGORY_DIMMER_AC_NONDIM = 0x0504, PRODUCT_CATEGORY_DIMMER_AC_ELV = 0x0505,   PRODUCT_CATEGORY_DIMMER_AC_OTHER = 0x0506, PRODUCT_CATEGORY_DIMMER_DC_LEVEL = 0x0507, PRODUCT_CATEGORY_DIMMER_DC_PWM = 0x0508, PRODUCT_CATEGORY_DIMMER_CS_LED = 0x0509,   PRODUCT_CATEGORY_DIMMER_OTHER = 0x05ff, PRODUCT_CATEGORY_POWER = 0x0600, PRODUCT_CATEGORY_POWER_CONTROL = 0x0601, PRODUCT_CATEGORY_POWER_SOURCE = 0x0602,   PRODUCT_CATEGORY_POWER_OTHER = 0x06ff, PRODUCT_CATEGORY_SCENIC = 0x0700, PRODUCT_CATEGORY_SCENIC_DRIVE = 0x0701, PRODUCT_CATEGORY_SCENIC_OTHER = 0x07ff,   PRODUCT_CATEGORY_DATA = 0x0800, PRODUCT_CATEGORY_DATA_DISTRIBUTION = 0x0801, PRODUCT_CATEGORY_DATA_CONVERSION = 0x0802, PRODUCT_CATEGORY_DATA_OTHER = 0x08ff,   PRODUCT_CATEGORY_AV = 0x0900, PRODUCT_CATEGORY_AV_AUDIO = 0x0901, PRODUCT_CATEGORY_AV_VIDEO = 0x0902, PRODUCT_CATEGORY_AV_OTHER = 0x09ff,   PRODUCT_CATEGORY_MONITOR = 0x0a00, PRODUCT_CATEGORY_MONITOR_ACLINEPOWER = 0x0a01, PRODUCT_CATEGORY_MONITOR_DCPOWER = 0x0a02, PRODUCT_CATEGORY_MONITOR_ENVIRONMENTAL = 0x0a03,   PRODUCT_CATEGORY_MONITOR_OTHER = 0x0aff, PRODUCT_CATEGORY_CONTROL = 0x7000, PRODUCT_CATEGORY_CONTROL_CONTROLLER = 0x7001, PRODUCT_CATEGORY_CONTROL_BACKUPDEVICE = 0x7002,   PRODUCT_CATEGORY_CONTROL_OTHER = 0x70ff, PRODUCT_CATEGORY_TEST = 0x7100, PRODUCT_CATEGORY_TEST_EQUIPMENT = 0x7101, PRODUCT_CATEGORY_TEST_EQUIPMENT_OTHER = 0x71ff,   PRODUCT_CATEGORY_OTHER = 0x7fff, PRODUCT_DETAIL_NOT_DECLARED = 0x0000, PRODUCT_DETAIL_ARC = 0x0001, PRODUCT_DETAIL_METAL_HALIDE = 0x0002,   PRODUCT_DETAIL_INCANDESCENT = 0x0003, PRODUCT_DETAIL_LED = 0x0004, PRODUCT_DETAIL_FLUORESCENT = 0x0005, PRODUCT_DETAIL_COLDCATHODE = 0x0006,   PRODUCT_DETAIL_ELECTROLUMINESCENT = 0x0007, PRODUCT_DETAIL_LASER = 0x0008, PRODUCT_DETAIL_FLASHTUBE = 0x0009, PRODUCT_DETAIL_COLORSCROLLER = 0x0100,   PRODUCT_DETAIL_COLORWHEEL = 0x0101, PRODUCT_DETAIL_COLORCHANGE = 0x0102, PRODUCT_DETAIL_IRIS_DOUSER = 0x0103, PRODUCT_DETAIL_DIMMING_SHUTTER = 0x0104,   PRODUCT_DETAIL_PROFILE_SHUTTER = 0x0105, PRODUCT_DETAIL_BARNDOOR_SHUTTER = 0x0106, PRODUCT_DETAIL_EFFECTS_DISC = 0x0107, PRODUCT_DETAIL_GOBO_ROTATOR = 0x0108,   PRODUCT_DETAIL_VIDEO = 0x0200, PRODUCT_DETAIL_SLIDE = 0x0201, PRODUCT_DETAIL_FILM = 0x0202, PRODUCT_DETAIL_OILWHEEL = 0x0203,   PRODUCT_DETAIL_LCDGATE = 0x0204, PRODUCT_DETAIL_FOGGER_GLYCOL = 0x0300, PRODUCT_DETAIL_FOGGER_MINERALOIL = 0x0301, PRODUCT_DETAIL_FOGGER_WATER = 0x0302,   PRODUCT_DETAIL_CO2 = 0x0303, PRODUCT_DETAIL_LN2 = 0x0304, PRODUCT_DETAIL_BUBBLE = 0x0305, PRODUCT_DETAIL_FLAME_PROPANE = 0x0306,   PRODUCT_DETAIL_FLAME_OTHER = 0x0307, PRODUCT_DETAIL_OLEFACTORY_STIMULATOR = 0x0308, PRODUCT_DETAIL_SNOW = 0x0309, PRODUCT_DETAIL_WATER_JET = 0x030a,   PRODUCT_DETAIL_WIND = 0x030b, PRODUCT_DETAIL_CONFETTI = 0x030c, PRODUCT_DETAIL_HAZARD = 0x030d, PRODUCT_DETAIL_PHASE_CONTROL = 0x0400,   PRODUCT_DETAIL_REVERSE_PHASE_CONTROL = 0x0401, PRODUCT_DETAIL_SINE = 0x0402, PRODUCT_DETAIL_PWM = 0x0403, PRODUCT_DETAIL_DC = 0x0404,   PRODUCT_DETAIL_HFBALLAST = 0x0405, PRODUCT_DETAIL_HFHV_NEONBALLAST = 0x0406, PRODUCT_DETAIL_HFHV_EL = 0x0407, PRODUCT_DETAIL_MHR_BALLAST = 0x0408,   PRODUCT_DETAIL_BITANGLE_MODULATION = 0x0409, PRODUCT_DETAIL_FREQUENCY_MODULATION = 0x040a, PRODUCT_DETAIL_HIGHFREQUENCY_12V = 0x040b, PRODUCT_DETAIL_RELAY_MECHANICAL = 0x040c,   PRODUCT_DETAIL_RELAY_ELECTRONIC = 0x040d, PRODUCT_DETAIL_SWITCH_ELECTRONIC = 0x040e, PRODUCT_DETAIL_CONTACTOR = 0x040f, PRODUCT_DETAIL_MIRRORBALL_ROTATOR = 0x0500,   PRODUCT_DETAIL_OTHER_ROTATOR = 0x0501, PRODUCT_DETAIL_KABUKI_DROP = 0x0502, PRODUCT_DETAIL_CURTAIN = 0x0503, PRODUCT_DETAIL_LINESET = 0x0504,   PRODUCT_DETAIL_MOTOR_CONTROL = 0x0505, PRODUCT_DETAIL_DAMPER_CONTROL = 0x0506, PRODUCT_DETAIL_SPLITTER = 0x0600, PRODUCT_DETAIL_ETHERNET_NODE = 0x0601,   PRODUCT_DETAIL_MERGE = 0x0602, PRODUCT_DETAIL_DATAPATCH = 0x0603, PRODUCT_DETAIL_WIRELESS_LINK = 0x0604, PRODUCT_DETAIL_PROTOCOL_CONVERTER = 0x0701,   PRODUCT_DETAIL_ANALOG_DEMULTIPLEX = 0x0702, PRODUCT_DETAIL_ANALOG_MULTIPLEX = 0x0703, PRODUCT_DETAIL_SWITCH_PANEL = 0x0704, PRODUCT_DETAIL_ROUTER = 0x0800,   PRODUCT_DETAIL_FADER = 0x0801, PRODUCT_DETAIL_MIXER = 0x0802, PRODUCT_DETAIL_CHANGEOVER_MANUAL = 0x0900, PRODUCT_DETAIL_CHANGEOVER_AUTO = 0x0901,   PRODUCT_DETAIL_TEST = 0x0902, PRODUCT_DETAIL_GFI_RCD = 0x0a00, PRODUCT_DETAIL_BATTERY = 0x0a01, PRODUCT_DETAIL_CONTROLLABLE_BREAKER = 0x0a02,   PRODUCT_DETAIL_OTHER = 0x7fff, SENSOR_TEMPERATURE = 0x00, SENSOR_VOLTAGE = 0x01, SENSOR_CURRENT = 0x02,   SENSOR_FREQUENCY = 0x03, SENSOR_RESISTANCE = 0x04, SENSOR_POWER = 0x05, SENSOR_MASS = 0x06,   SENSOR_LENGTH = 0x07, SENSOR_AREA = 0x08, SENSOR_VOLUME = 0x09, SENSOR_DENSITY = 0x0a,   SENSOR_VELOCITY = 0x0b, SENSOR_ACCELERATION = 0x0c, SENSOR_FORCE = 0x0d, SENSOR_ENERGY = 0x0e,   SENSOR_PRESSURE = 0x0f, SENSOR_TIME = 0x10, SENSOR_ANGLE = 0x11, SENSOR_POSITION_X = 0x12,   SENSOR_POSITION_Y = 0x13, SENSOR_POSITION_Z = 0x14, SENSOR_ANGULAR_VELOCITY = 0x15, SENSOR_LUMINOUS_INTENSITY = 0x16,   SENSOR_LUMINOUS_FLUX = 0x17, SENSOR_ILLUMINANCE = 0x18, SENSOR_CHROMINANCE_RED = 0x19, SENSOR_CHROMINANCE_GREEN = 0x1a,   SENSOR_CHROMINANCE_BLUE = 0x1b, SENSOR_CONTACTS = 0x1c, SENSOR_MEMORY = 0x1d, SENSOR_ITEMS = 0x1e,   SENSOR_HUMIDITY = 0x1f, SENSOR_COUNTER_16BIT = 0x20, SENSOR_OTHER = 0x7f, UNITS_NONE = 0x00,   UNITS_CENTIGRADE = 0x01, UNITS_VOLTS_DC = 0x02, UNITS_VOLTS_AC_PEAK = 0x03, UNITS_VOLTS_AC_RMS = 0x04,   UNITS_AMPERE_DC = 0x05, UNITS_AMPERE_AC_PEAK = 0x06, UNITS_AMPERE_AC_RMS = 0x07, UNITS_HERTZ = 0x08,   UNITS_OHM = 0x09, UNITS_WATT = 0x0a, UNITS_KILOGRAM = 0x0b, UNITS_METERS = 0x0c,   UNITS_METERS_SQUARED = 0x0d, UNITS_METERS_CUBED = 0x0e, UNITS_KILOGRAMMES_PER_METER_CUBED = 0x0f, UNITS_METERS_PER_SECOND = 0x10,   UNITS_METERS_PER_SECOND_SQUARED = 0x11, UNITS_NEWTON = 0x12, UNITS_JOULE = 0x13, UNITS_PASCAL = 0x14,   UNITS_SECOND = 0x15, UNITS_DEGREE = 0x16, UNITS_STERADIAN = 0x17, UNITS_CANDELA = 0x18,   UNITS_LUMEN = 0x19, UNITS_LUX = 0x1a, UNITS_IRE = 0x1b, UNITS_BYTE = 0x1c,   PREFIX_NONE = 0x00, PREFIX_DECI = 0x01, PREFIX_CENTI = 0x02, PREFIX_MILLI = 0x03,   PREFIX_MICRO = 0x04, PREFIX_NANO = 0x05, PREFIX_PICO = 0x06, PREFIX_FEMTO = 0x07,   PREFIX_ATTO = 0x08, PREFIX_ZEPTO = 0x09, PREFIX_YOCTO = 0x0a, PREFIX_DECA = 0x11,   PREFIX_HECTO = 0x12, PREFIX_KILO = 0x13, PREFIX_MEGA = 0x14, PREFIX_GIGA = 0x15,   PREFIX_TERA = 0x16, PREFIX_PETA = 0x17, PREFIX_EXA = 0x18, PREFIX_ZETTA = 0x19,   PREFIX_YOTTA = 0x1a }
enum	__attribute__ {   PRODUCT_CATEGORY_NOT_DECLARED = 0x0000, PRODUCT_CATEGORY_FIXTURE = 0x0100, PRODUCT_CATEGORY_FIXTURE_FIXED = 0x0101, PRODUCT_CATEGORY_FIXTURE_MOVING_YOKE = 0x0102,   PRODUCT_CATEGORY_FIXTURE_MOVING_MIRROR = 0x0103, PRODUCT_CATEGORY_FIXTURE_OTHER = 0x01ff, PRODUCT_CATEGORY_FIXTURE_ACCESSORY = 0x0200, PRODUCT_CATEGORY_FIXTURE_ACCESSORY_COLOR = 0x0201,   PRODUCT_CATEGORY_FIXTURE_ACCESSORY_YOKE = 0x0202, PRODUCT_CATEGORY_FIXTURE_ACCESSORY_MIRROR = 0x0203, PRODUCT_CATEGORY_FIXTURE_ACCESSORY_EFFECT = 0x0204, PRODUCT_CATEGORY_FIXTURE_ACCESSORY_BEAM = 0x0205,   PRODUCT_CATEGORY_FIXTURE_ACCESSORY_OTHER = 0x02ff, PRODUCT_CATEGORY_PROJECTOR = 0x0300, PRODUCT_CATEGORY_PROJECTOR_FIXED = 0x0301, PRODUCT_CATEGORY_PROJECTOR_MOVING_YOKE = 0x0302,   PRODUCT_CATEGORY_PROJECTOR_MOVING_MIRROR = 0x0303, PRODUCT_CATEGORY_PROJECTOR_OTHER = 0x03ff, PRODUCT_CATEGORY_ATMOSPHERIC = 0x0400, PRODUCT_CATEGORY_ATMOSPHERIC_EFFECT = 0x0401,   PRODUCT_CATEGORY_ATMOSPHERIC_PYRO = 0x0402, PRODUCT_CATEGORY_ATMOSPHERIC_OTHER = 0x04ff, PRODUCT_CATEGORY_DIMMER = 0x0500, PRODUCT_CATEGORY_DIMMER_AC_INCANDESCENT = 0x0501,   PRODUCT_CATEGORY_DIMMER_AC_FLUORESCENT = 0x0502, PRODUCT_CATEGORY_DIMMER_AC_COLDCATHODE = 0x0503, PRODUCT_CATEGORY_DIMMER_AC_NONDIM = 0x0504, PRODUCT_CATEGORY_DIMMER_AC_ELV = 0x0505,   PRODUCT_CATEGORY_DIMMER_AC_OTHER = 0x0506, PRODUCT_CATEGORY_DIMMER_DC_LEVEL = 0x0507, PRODUCT_CATEGORY_DIMMER_DC_PWM = 0x0508, PRODUCT_CATEGORY_DIMMER_CS_LED = 0x0509,   PRODUCT_CATEGORY_DIMMER_OTHER = 0x05ff, PRODUCT_CATEGORY_POWER = 0x0600, PRODUCT_CATEGORY_POWER_CONTROL = 0x0601, PRODUCT_CATEGORY_POWER_SOURCE = 0x0602,   PRODUCT_CATEGORY_POWER_OTHER = 0x06ff, PRODUCT_CATEGORY_SCENIC = 0x0700, PRODUCT_CATEGORY_SCENIC_DRIVE = 0x0701, PRODUCT_CATEGORY_SCENIC_OTHER = 0x07ff,   PRODUCT_CATEGORY_DATA = 0x0800, PRODUCT_CATEGORY_DATA_DISTRIBUTION = 0x0801, PRODUCT_CATEGORY_DATA_CONVERSION = 0x0802, PRODUCT_CATEGORY_DATA_OTHER = 0x08ff,   PRODUCT_CATEGORY_AV = 0x0900, PRODUCT_CATEGORY_AV_AUDIO = 0x0901, PRODUCT_CATEGORY_AV_VIDEO = 0x0902, PRODUCT_CATEGORY_AV_OTHER = 0x09ff,   PRODUCT_CATEGORY_MONITOR = 0x0a00, PRODUCT_CATEGORY_MONITOR_ACLINEPOWER = 0x0a01, PRODUCT_CATEGORY_MONITOR_DCPOWER = 0x0a02, PRODUCT_CATEGORY_MONITOR_ENVIRONMENTAL = 0x0a03,   PRODUCT_CATEGORY_MONITOR_OTHER = 0x0aff, PRODUCT_CATEGORY_CONTROL = 0x7000, PRODUCT_CATEGORY_CONTROL_CONTROLLER = 0x7001, PRODUCT_CATEGORY_CONTROL_BACKUPDEVICE = 0x7002,   PRODUCT_CATEGORY_CONTROL_OTHER = 0x70ff, PRODUCT_CATEGORY_TEST = 0x7100, PRODUCT_CATEGORY_TEST_EQUIPMENT = 0x7101, PRODUCT_CATEGORY_TEST_EQUIPMENT_OTHER = 0x71ff,   PRODUCT_CATEGORY_OTHER = 0x7fff, PRODUCT_DETAIL_NOT_DECLARED = 0x0000, PRODUCT_DETAIL_ARC = 0x0001, PRODUCT_DETAIL_METAL_HALIDE = 0x0002,   PRODUCT_DETAIL_INCANDESCENT = 0x0003, PRODUCT_DETAIL_LED = 0x0004, PRODUCT_DETAIL_FLUORESCENT = 0x0005, PRODUCT_DETAIL_COLDCATHODE = 0x0006,   PRODUCT_DETAIL_ELECTROLUMINESCENT = 0x0007, PRODUCT_DETAIL_LASER = 0x0008, PRODUCT_DETAIL_FLASHTUBE = 0x0009, PRODUCT_DETAIL_COLORSCROLLER = 0x0100,   PRODUCT_DETAIL_COLORWHEEL = 0x0101, PRODUCT_DETAIL_COLORCHANGE = 0x0102, PRODUCT_DETAIL_IRIS_DOUSER = 0x0103, PRODUCT_DETAIL_DIMMING_SHUTTER = 0x0104,   PRODUCT_DETAIL_PROFILE_SHUTTER = 0x0105, PRODUCT_DETAIL_BARNDOOR_SHUTTER = 0x0106, PRODUCT_DETAIL_EFFECTS_DISC = 0x0107, PRODUCT_DETAIL_GOBO_ROTATOR = 0x0108,   PRODUCT_DETAIL_VIDEO = 0x0200, PRODUCT_DETAIL_SLIDE = 0x0201, PRODUCT_DETAIL_FILM = 0x0202, PRODUCT_DETAIL_OILWHEEL = 0x0203,   PRODUCT_DETAIL_LCDGATE = 0x0204, PRODUCT_DETAIL_FOGGER_GLYCOL = 0x0300, PRODUCT_DETAIL_FOGGER_MINERALOIL = 0x0301, PRODUCT_DETAIL_FOGGER_WATER = 0x0302,   PRODUCT_DETAIL_CO2 = 0x0303, PRODUCT_DETAIL_LN2 = 0x0304, PRODUCT_DETAIL_BUBBLE = 0x0305, PRODUCT_DETAIL_FLAME_PROPANE = 0x0306,   PRODUCT_DETAIL_FLAME_OTHER = 0x0307, PRODUCT_DETAIL_OLEFACTORY_STIMULATOR = 0x0308, PRODUCT_DETAIL_SNOW = 0x0309, PRODUCT_DETAIL_WATER_JET = 0x030a,   PRODUCT_DETAIL_WIND = 0x030b, PRODUCT_DETAIL_CONFETTI = 0x030c, PRODUCT_DETAIL_HAZARD = 0x030d, PRODUCT_DETAIL_PHASE_CONTROL = 0x0400,   PRODUCT_DETAIL_REVERSE_PHASE_CONTROL = 0x0401, PRODUCT_DETAIL_SINE = 0x0402, PRODUCT_DETAIL_PWM = 0x0403, PRODUCT_DETAIL_DC = 0x0404,   PRODUCT_DETAIL_HFBALLAST = 0x0405, PRODUCT_DETAIL_HFHV_NEONBALLAST = 0x0406, PRODUCT_DETAIL_HFHV_EL = 0x0407, PRODUCT_DETAIL_MHR_BALLAST = 0x0408,   PRODUCT_DETAIL_BITANGLE_MODULATION = 0x0409, PRODUCT_DETAIL_FREQUENCY_MODULATION = 0x040a, PRODUCT_DETAIL_HIGHFREQUENCY_12V = 0x040b, PRODUCT_DETAIL_RELAY_MECHANICAL = 0x040c,   PRODUCT_DETAIL_RELAY_ELECTRONIC = 0x040d, PRODUCT_DETAIL_SWITCH_ELECTRONIC = 0x040e, PRODUCT_DETAIL_CONTACTOR = 0x040f, PRODUCT_DETAIL_MIRRORBALL_ROTATOR = 0x0500,   PRODUCT_DETAIL_OTHER_ROTATOR = 0x0501, PRODUCT_DETAIL_KABUKI_DROP = 0x0502, PRODUCT_DETAIL_CURTAIN = 0x0503, PRODUCT_DETAIL_LINESET = 0x0504,   PRODUCT_DETAIL_MOTOR_CONTROL = 0x0505, PRODUCT_DETAIL_DAMPER_CONTROL = 0x0506, PRODUCT_DETAIL_SPLITTER = 0x0600, PRODUCT_DETAIL_ETHERNET_NODE = 0x0601,   PRODUCT_DETAIL_MERGE = 0x0602, PRODUCT_DETAIL_DATAPATCH = 0x0603, PRODUCT_DETAIL_WIRELESS_LINK = 0x0604, PRODUCT_DETAIL_PROTOCOL_CONVERTER = 0x0701,   PRODUCT_DETAIL_ANALOG_DEMULTIPLEX = 0x0702, PRODUCT_DETAIL_ANALOG_MULTIPLEX = 0x0703, PRODUCT_DETAIL_SWITCH_PANEL = 0x0704, PRODUCT_DETAIL_ROUTER = 0x0800,   PRODUCT_DETAIL_FADER = 0x0801, PRODUCT_DETAIL_MIXER = 0x0802, PRODUCT_DETAIL_CHANGEOVER_MANUAL = 0x0900, PRODUCT_DETAIL_CHANGEOVER_AUTO = 0x0901,   PRODUCT_DETAIL_TEST = 0x0902, PRODUCT_DETAIL_GFI_RCD = 0x0a00, PRODUCT_DETAIL_BATTERY = 0x0a01, PRODUCT_DETAIL_CONTROLLABLE_BREAKER = 0x0a02,   PRODUCT_DETAIL_OTHER = 0x7fff, SENSOR_TEMPERATURE = 0x00, SENSOR_VOLTAGE = 0x01, SENSOR_CURRENT = 0x02,   SENSOR_FREQUENCY = 0x03, SENSOR_RESISTANCE = 0x04, SENSOR_POWER = 0x05, SENSOR_MASS = 0x06,   SENSOR_LENGTH = 0x07, SENSOR_AREA = 0x08, SENSOR_VOLUME = 0x09, SENSOR_DENSITY = 0x0a,   SENSOR_VELOCITY = 0x0b, SENSOR_ACCELERATION = 0x0c, SENSOR_FORCE = 0x0d, SENSOR_ENERGY = 0x0e,   SENSOR_PRESSURE = 0x0f, SENSOR_TIME = 0x10, SENSOR_ANGLE = 0x11, SENSOR_POSITION_X = 0x12,   SENSOR_POSITION_Y = 0x13, SENSOR_POSITION_Z = 0x14, SENSOR_ANGULAR_VELOCITY = 0x15, SENSOR_LUMINOUS_INTENSITY = 0x16,   SENSOR_LUMINOUS_FLUX = 0x17, SENSOR_ILLUMINANCE = 0x18, SENSOR_CHROMINANCE_RED = 0x19, SENSOR_CHROMINANCE_GREEN = 0x1a,   SENSOR_CHROMINANCE_BLUE = 0x1b, SENSOR_CONTACTS = 0x1c, SENSOR_MEMORY = 0x1d, SENSOR_ITEMS = 0x1e,   SENSOR_HUMIDITY = 0x1f, SENSOR_COUNTER_16BIT = 0x20, SENSOR_OTHER = 0x7f, UNITS_NONE = 0x00,   UNITS_CENTIGRADE = 0x01, UNITS_VOLTS_DC = 0x02, UNITS_VOLTS_AC_PEAK = 0x03, UNITS_VOLTS_AC_RMS = 0x04,   UNITS_AMPERE_DC = 0x05, UNITS_AMPERE_AC_PEAK = 0x06, UNITS_AMPERE_AC_RMS = 0x07, UNITS_HERTZ = 0x08,   UNITS_OHM = 0x09, UNITS_WATT = 0x0a, UNITS_KILOGRAM = 0x0b, UNITS_METERS = 0x0c,   UNITS_METERS_SQUARED = 0x0d, UNITS_METERS_CUBED = 0x0e, UNITS_KILOGRAMMES_PER_METER_CUBED = 0x0f, UNITS_METERS_PER_SECOND = 0x10,   UNITS_METERS_PER_SECOND_SQUARED = 0x11, UNITS_NEWTON = 0x12, UNITS_JOULE = 0x13, UNITS_PASCAL = 0x14,   UNITS_SECOND = 0x15, UNITS_DEGREE = 0x16, UNITS_STERADIAN = 0x17, UNITS_CANDELA = 0x18,   UNITS_LUMEN = 0x19, UNITS_LUX = 0x1a, UNITS_IRE = 0x1b, UNITS_BYTE = 0x1c,   PREFIX_NONE = 0x00, PREFIX_DECI = 0x01, PREFIX_CENTI = 0x02, PREFIX_MILLI = 0x03,   PREFIX_MICRO = 0x04, PREFIX_NANO = 0x05, PREFIX_PICO = 0x06, PREFIX_FEMTO = 0x07,   PREFIX_ATTO = 0x08, PREFIX_ZEPTO = 0x09, PREFIX_YOCTO = 0x0a, PREFIX_DECA = 0x11,   PREFIX_HECTO = 0x12, PREFIX_KILO = 0x13, PREFIX_MEGA = 0x14, PREFIX_GIGA = 0x15,   PREFIX_TERA = 0x16, PREFIX_PETA = 0x17, PREFIX_EXA = 0x18, PREFIX_ZETTA = 0x19,   PREFIX_YOTTA = 0x1a }
enum	__attribute__ {   PRODUCT_CATEGORY_NOT_DECLARED = 0x0000, PRODUCT_CATEGORY_FIXTURE = 0x0100, PRODUCT_CATEGORY_FIXTURE_FIXED = 0x0101, PRODUCT_CATEGORY_FIXTURE_MOVING_YOKE = 0x0102,   PRODUCT_CATEGORY_FIXTURE_MOVING_MIRROR = 0x0103, PRODUCT_CATEGORY_FIXTURE_OTHER = 0x01ff, PRODUCT_CATEGORY_FIXTURE_ACCESSORY = 0x0200, PRODUCT_CATEGORY_FIXTURE_ACCESSORY_COLOR = 0x0201,   PRODUCT_CATEGORY_FIXTURE_ACCESSORY_YOKE = 0x0202, PRODUCT_CATEGORY_FIXTURE_ACCESSORY_MIRROR = 0x0203, PRODUCT_CATEGORY_FIXTURE_ACCESSORY_EFFECT = 0x0204, PRODUCT_CATEGORY_FIXTURE_ACCESSORY_BEAM = 0x0205,   PRODUCT_CATEGORY_FIXTURE_ACCESSORY_OTHER = 0x02ff, PRODUCT_CATEGORY_PROJECTOR = 0x0300, PRODUCT_CATEGORY_PROJECTOR_FIXED = 0x0301, PRODUCT_CATEGORY_PROJECTOR_MOVING_YOKE = 0x0302,   PRODUCT_CATEGORY_PROJECTOR_MOVING_MIRROR = 0x0303, PRODUCT_CATEGORY_PROJECTOR_OTHER = 0x03ff, PRODUCT_CATEGORY_ATMOSPHERIC = 0x0400, PRODUCT_CATEGORY_ATMOSPHERIC_EFFECT = 0x0401,   PRODUCT_CATEGORY_ATMOSPHERIC_PYRO = 0x0402, PRODUCT_CATEGORY_ATMOSPHERIC_OTHER = 0x04ff, PRODUCT_CATEGORY_DIMMER = 0x0500, PRODUCT_CATEGORY_DIMMER_AC_INCANDESCENT = 0x0501,   PRODUCT_CATEGORY_DIMMER_AC_FLUORESCENT = 0x0502, PRODUCT_CATEGORY_DIMMER_AC_COLDCATHODE = 0x0503, PRODUCT_CATEGORY_DIMMER_AC_NONDIM = 0x0504, PRODUCT_CATEGORY_DIMMER_AC_ELV = 0x0505,   PRODUCT_CATEGORY_DIMMER_AC_OTHER = 0x0506, PRODUCT_CATEGORY_DIMMER_DC_LEVEL = 0x0507, PRODUCT_CATEGORY_DIMMER_DC_PWM = 0x0508, PRODUCT_CATEGORY_DIMMER_CS_LED = 0x0509,   PRODUCT_CATEGORY_DIMMER_OTHER = 0x05ff, PRODUCT_CATEGORY_POWER = 0x0600, PRODUCT_CATEGORY_POWER_CONTROL = 0x0601, PRODUCT_CATEGORY_POWER_SOURCE = 0x0602,   PRODUCT_CATEGORY_POWER_OTHER = 0x06ff, PRODUCT_CATEGORY_SCENIC = 0x0700, PRODUCT_CATEGORY_SCENIC_DRIVE = 0x0701, PRODUCT_CATEGORY_SCENIC_OTHER = 0x07ff,   PRODUCT_CATEGORY_DATA = 0x0800, PRODUCT_CATEGORY_DATA_DISTRIBUTION = 0x0801, PRODUCT_CATEGORY_DATA_CONVERSION = 0x0802, PRODUCT_CATEGORY_DATA_OTHER = 0x08ff,   PRODUCT_CATEGORY_AV = 0x0900, PRODUCT_CATEGORY_AV_AUDIO = 0x0901, PRODUCT_CATEGORY_AV_VIDEO = 0x0902, PRODUCT_CATEGORY_AV_OTHER = 0x09ff,   PRODUCT_CATEGORY_MONITOR = 0x0a00, PRODUCT_CATEGORY_MONITOR_ACLINEPOWER = 0x0a01, PRODUCT_CATEGORY_MONITOR_DCPOWER = 0x0a02, PRODUCT_CATEGORY_MONITOR_ENVIRONMENTAL = 0x0a03,   PRODUCT_CATEGORY_MONITOR_OTHER = 0x0aff, PRODUCT_CATEGORY_CONTROL = 0x7000, PRODUCT_CATEGORY_CONTROL_CONTROLLER = 0x7001, PRODUCT_CATEGORY_CONTROL_BACKUPDEVICE = 0x7002,   PRODUCT_CATEGORY_CONTROL_OTHER = 0x70ff, PRODUCT_CATEGORY_TEST = 0x7100, PRODUCT_CATEGORY_TEST_EQUIPMENT = 0x7101, PRODUCT_CATEGORY_TEST_EQUIPMENT_OTHER = 0x71ff,   PRODUCT_CATEGORY_OTHER = 0x7fff, PRODUCT_DETAIL_NOT_DECLARED = 0x0000, PRODUCT_DETAIL_ARC = 0x0001, PRODUCT_DETAIL_METAL_HALIDE = 0x0002,   PRODUCT_DETAIL_INCANDESCENT = 0x0003, PRODUCT_DETAIL_LED = 0x0004, PRODUCT_DETAIL_FLUORESCENT = 0x0005, PRODUCT_DETAIL_COLDCATHODE = 0x0006,   PRODUCT_DETAIL_ELECTROLUMINESCENT = 0x0007, PRODUCT_DETAIL_LASER = 0x0008, PRODUCT_DETAIL_FLASHTUBE = 0x0009, PRODUCT_DETAIL_COLORSCROLLER = 0x0100,   PRODUCT_DETAIL_COLORWHEEL = 0x0101, PRODUCT_DETAIL_COLORCHANGE = 0x0102, PRODUCT_DETAIL_IRIS_DOUSER = 0x0103, PRODUCT_DETAIL_DIMMING_SHUTTER = 0x0104,   PRODUCT_DETAIL_PROFILE_SHUTTER = 0x0105, PRODUCT_DETAIL_BARNDOOR_SHUTTER = 0x0106, PRODUCT_DETAIL_EFFECTS_DISC = 0x0107, PRODUCT_DETAIL_GOBO_ROTATOR = 0x0108,   PRODUCT_DETAIL_VIDEO = 0x0200, PRODUCT_DETAIL_SLIDE = 0x0201, PRODUCT_DETAIL_FILM = 0x0202, PRODUCT_DETAIL_OILWHEEL = 0x0203,   PRODUCT_DETAIL_LCDGATE = 0x0204, PRODUCT_DETAIL_FOGGER_GLYCOL = 0x0300, PRODUCT_DETAIL_FOGGER_MINERALOIL = 0x0301, PRODUCT_DETAIL_FOGGER_WATER = 0x0302,   PRODUCT_DETAIL_CO2 = 0x0303, PRODUCT_DETAIL_LN2 = 0x0304, PRODUCT_DETAIL_BUBBLE = 0x0305, PRODUCT_DETAIL_FLAME_PROPANE = 0x0306,   PRODUCT_DETAIL_FLAME_OTHER = 0x0307, PRODUCT_DETAIL_OLEFACTORY_STIMULATOR = 0x0308, PRODUCT_DETAIL_SNOW = 0x0309, PRODUCT_DETAIL_WATER_JET = 0x030a,   PRODUCT_DETAIL_WIND = 0x030b, PRODUCT_DETAIL_CONFETTI = 0x030c, PRODUCT_DETAIL_HAZARD = 0x030d, PRODUCT_DETAIL_PHASE_CONTROL = 0x0400,   PRODUCT_DETAIL_REVERSE_PHASE_CONTROL = 0x0401, PRODUCT_DETAIL_SINE = 0x0402, PRODUCT_DETAIL_PWM = 0x0403, PRODUCT_DETAIL_DC = 0x0404,   PRODUCT_DETAIL_HFBALLAST = 0x0405, PRODUCT_DETAIL_HFHV_NEONBALLAST = 0x0406, PRODUCT_DETAIL_HFHV_EL = 0x0407, PRODUCT_DETAIL_MHR_BALLAST = 0x0408,   PRODUCT_DETAIL_BITANGLE_MODULATION = 0x0409, PRODUCT_DETAIL_FREQUENCY_MODULATION = 0x040a, PRODUCT_DETAIL_HIGHFREQUENCY_12V = 0x040b, PRODUCT_DETAIL_RELAY_MECHANICAL = 0x040c,   PRODUCT_DETAIL_RELAY_ELECTRONIC = 0x040d, PRODUCT_DETAIL_SWITCH_ELECTRONIC = 0x040e, PRODUCT_DETAIL_CONTACTOR = 0x040f, PRODUCT_DETAIL_MIRRORBALL_ROTATOR = 0x0500,   PRODUCT_DETAIL_OTHER_ROTATOR = 0x0501, PRODUCT_DETAIL_KABUKI_DROP = 0x0502, PRODUCT_DETAIL_CURTAIN = 0x0503, PRODUCT_DETAIL_LINESET = 0x0504,   PRODUCT_DETAIL_MOTOR_CONTROL = 0x0505, PRODUCT_DETAIL_DAMPER_CONTROL = 0x0506, PRODUCT_DETAIL_SPLITTER = 0x0600, PRODUCT_DETAIL_ETHERNET_NODE = 0x0601,   PRODUCT_DETAIL_MERGE = 0x0602, PRODUCT_DETAIL_DATAPATCH = 0x0603, PRODUCT_DETAIL_WIRELESS_LINK = 0x0604, PRODUCT_DETAIL_PROTOCOL_CONVERTER = 0x0701,   PRODUCT_DETAIL_ANALOG_DEMULTIPLEX = 0x0702, PRODUCT_DETAIL_ANALOG_MULTIPLEX = 0x0703, PRODUCT_DETAIL_SWITCH_PANEL = 0x0704, PRODUCT_DETAIL_ROUTER = 0x0800,   PRODUCT_DETAIL_FADER = 0x0801, PRODUCT_DETAIL_MIXER = 0x0802, PRODUCT_DETAIL_CHANGEOVER_MANUAL = 0x0900, PRODUCT_DETAIL_CHANGEOVER_AUTO = 0x0901,   PRODUCT_DETAIL_TEST = 0x0902, PRODUCT_DETAIL_GFI_RCD = 0x0a00, PRODUCT_DETAIL_BATTERY = 0x0a01, PRODUCT_DETAIL_CONTROLLABLE_BREAKER = 0x0a02,   PRODUCT_DETAIL_OTHER = 0x7fff, SENSOR_TEMPERATURE = 0x00, SENSOR_VOLTAGE = 0x01, SENSOR_CURRENT = 0x02,   SENSOR_FREQUENCY = 0x03, SENSOR_RESISTANCE = 0x04, SENSOR_POWER = 0x05, SENSOR_MASS = 0x06,   SENSOR_LENGTH = 0x07, SENSOR_AREA = 0x08, SENSOR_VOLUME = 0x09, SENSOR_DENSITY = 0x0a,   SENSOR_VELOCITY = 0x0b, SENSOR_ACCELERATION = 0x0c, SENSOR_FORCE = 0x0d, SENSOR_ENERGY = 0x0e,   SENSOR_PRESSURE = 0x0f, SENSOR_TIME = 0x10, SENSOR_ANGLE = 0x11, SENSOR_POSITION_X = 0x12,   SENSOR_POSITION_Y = 0x13, SENSOR_POSITION_Z = 0x14, SENSOR_ANGULAR_VELOCITY = 0x15, SENSOR_LUMINOUS_INTENSITY = 0x16,   SENSOR_LUMINOUS_FLUX = 0x17, SENSOR_ILLUMINANCE = 0x18, SENSOR_CHROMINANCE_RED = 0x19, SENSOR_CHROMINANCE_GREEN = 0x1a,   SENSOR_CHROMINANCE_BLUE = 0x1b, SENSOR_CONTACTS = 0x1c, SENSOR_MEMORY = 0x1d, SENSOR_ITEMS = 0x1e,   SENSOR_HUMIDITY = 0x1f, SENSOR_COUNTER_16BIT = 0x20, SENSOR_OTHER = 0x7f, UNITS_NONE = 0x00,   UNITS_CENTIGRADE = 0x01, UNITS_VOLTS_DC = 0x02, UNITS_VOLTS_AC_PEAK = 0x03, UNITS_VOLTS_AC_RMS = 0x04,   UNITS_AMPERE_DC = 0x05, UNITS_AMPERE_AC_PEAK = 0x06, UNITS_AMPERE_AC_RMS = 0x07, UNITS_HERTZ = 0x08,   UNITS_OHM = 0x09, UNITS_WATT = 0x0a, UNITS_KILOGRAM = 0x0b, UNITS_METERS = 0x0c,   UNITS_METERS_SQUARED = 0x0d, UNITS_METERS_CUBED = 0x0e, UNITS_KILOGRAMMES_PER_METER_CUBED = 0x0f, UNITS_METERS_PER_SECOND = 0x10,   UNITS_METERS_PER_SECOND_SQUARED = 0x11, UNITS_NEWTON = 0x12, UNITS_JOULE = 0x13, UNITS_PASCAL = 0x14,   UNITS_SECOND = 0x15, UNITS_DEGREE = 0x16, UNITS_STERADIAN = 0x17, UNITS_CANDELA = 0x18,   UNITS_LUMEN = 0x19, UNITS_LUX = 0x1a, UNITS_IRE = 0x1b, UNITS_BYTE = 0x1c,   PREFIX_NONE = 0x00, PREFIX_DECI = 0x01, PREFIX_CENTI = 0x02, PREFIX_MILLI = 0x03,   PREFIX_MICRO = 0x04, PREFIX_NANO = 0x05, PREFIX_PICO = 0x06, PREFIX_FEMTO = 0x07,   PREFIX_ATTO = 0x08, PREFIX_ZEPTO = 0x09, PREFIX_YOCTO = 0x0a, PREFIX_DECA = 0x11,   PREFIX_HECTO = 0x12, PREFIX_KILO = 0x13, PREFIX_MEGA = 0x14, PREFIX_GIGA = 0x15,   PREFIX_TERA = 0x16, PREFIX_PETA = 0x17, PREFIX_EXA = 0x18, PREFIX_ZETTA = 0x19,   PREFIX_YOTTA = 0x1a }
enum	RDMDataType {   DS_NOT_DEFINED = 0x0, DS_BIT_FIELD = 0x01, DS_ASCII = 0x02, DS_UNSIGNED_BYTE = 0x03,   DS_SIGNED_BYTE = 0x04, DS_UNSIGNED_WORD = 0x05, DS_SIGNED_WORD = 0x06, DS_UNSIGNED_DWORD = 0x07,   DS_SIGNED_DWORD = 0x08 }
enum	RDMCommandClassSupported { CC_GET = 0x01, CC_SET = 0x02, CC_GET_SET = 0x03 }
enum	RDMSlotType {   ST_PRIMARY = 0x00, ST_SEC_FINE = 0x01, ST_SEC_TIMING = 0x02, ST_SEC_SPEED = 0x03,   ST_SEC_CONTROL = 0x04, ST_SEC_INDEX = 0x05, ST_SEC_ROTATION = 0x06, ST_SEC_INDEX_ROTATE = 0x07,   ST_SEC_UNDEFINED = 0xff }
	The RDM slot types, from table C-1 of the standard.
enum	RDMSlotCategory {   SD_INTENSITY = 0x0001, SD_INTENSITY_MASTER = 0x0002, SD_PAN = 0x0101, SD_TILT = 0x0102,   SD_COLOR_WHEEL = 0x0201, SD_COLOR_SUB_CYAN = 0x0202, SD_COLOR_SUB_YELLOW = 0x0203, SD_COLOR_SUB_MAGENTA = 0x0204,   SD_COLOR_ADD_RED = 0x0205, SD_COLOR_ADD_GREEN = 0x0206, SD_COLOR_ADD_BLUE = 0x0207, SD_COLOR_CORRECTION = 0x0208,   SD_COLOR_SCROLL = 0x0209, SD_COLOR_SEMAPHORE = 0x0210, SD_COLOR_ADD_AMBER = 0x0211, SD_COLOR_ADD_WHITE = 0x0212,   SD_COLOR_ADD_WARM_WHITE = 0x0213, SD_COLOR_ADD_COOL_WHITE = 0x0214, SD_COLOR_SUB_UV = 0x0215, SD_COLOR_HUE = 0x0216,   SD_COLOR_SATURATION = 0x0217, SD_STATIC_GOBO_WHEEL = 0x0301, SD_ROTO_GOBO_WHEEL = 0x0302, SD_PRISM_WHEEL = 0x0303,   SD_EFFECTS_WHEEL = 0x0304, SD_BEAM_SIZE_IRIS = 0x0401, SD_EDGE = 0x0402, SD_FROST = 0x0403,   SD_STROBE = 0x0404, SD_ZOOM = 0x0405, SD_FRAMING_SHUTTER = 0x0406, SD_SHUTTER_ROTATE = 0x0407,   SD_DOUSER = 0x0408, SD_BARN_DOOR = 0x0409, SD_LAMP_CONTROL = 0x0501, SD_FIXTURE_CONTROL = 0x0502,   SD_FIXTURE_SPEED = 0x0503, SD_MACRO = 0x0504, SD_POWER_CONTROL = 0x0505, SD_FAN_CONTROL = 0x0506,   SD_HEATER_CONTROL = 0x0507, SD_FOUNTAIN_CONTROL = 0x0508, SD_UNDEFINED = 0xffff }
enum	RDMIdentifyMode { IDENTIFY_MODE_QUIET = 0x00, IDENTIFY_MODE_LOUD = 0xff }
enum	RDMPresetPlayback { PRESET_PLAYBACK_OFF = 0x0000, PRESET_PLAYBACK_ALL = 0xffff }
enum	RDMPresetProgrammed { PRESET_NOT_PROGRAMMED = 0x00, PRESET_PROGRAMMED = 0x01, PRESET_PROGRAMMED_READ_ONLY = 0x02 }
enum	RDMMergeMode {   MERGE_MODE_DEFAULT = 0x00, MERGE_MODE_HTP = 0x01, MERGE_MODE_LTP = 0x02, MERGE_MODE_DMX_ONLY = 0x03,   MERGE_MODE_OTHER = 0xff }
enum	RDMStatusMessageId {   STS_CAL_FAIL = 0x0001, STS_SENS_NOT_FOUND = 0x0002, STS_SENS_ALWAYS_ON = 0x0003, STS_FEEDBACK_ERROR = 0x0004,   STS_INDEX_ERROR = 0x0005, STS_LAMP_DOUSED = 0x0011, STS_LAMP_STRIKE = 0x0012, STS_LAMP_ACCESS_OPEN = 0x0013,   STS_LAMP_ALWAYS_ON = 0x0014, STS_OVERTEMP = 0x0021, STS_UNDERTEMP = 0x0022, STS_SENS_OUT_RANGE = 0x0023,   STS_OVERVOLTAGE_PHASE = 0x0031, STS_UNDERVOLTAGE_PHASE = 0x0032, STS_OVERCURRENT = 0x0033, STS_UNDERCURRENT = 0x0034,   STS_PHASE = 0x0035, STS_PHASE_ERROR = 0x0036, STS_AMPS = 0x0037, STS_VOLTS = 0x0038,   STS_DIMSLOT_OCCUPIED = 0x0041, STS_BREAKER_TRIP = 0x0042, STS_WATTS = 0x0043, STS_DIM_FAILURE = 0x0044,   STS_DIM_PANIC = 0x0045, STS_LOAD_FAILURE = 0x0046, STS_READY = 0x0050, STS_NOT_READY = 0x0051,   STS_LOW_FLUID = 0x0052, STS_EEPROM_ERROR = 0x0060, STS_RAM_ERROR = 0x0061, STS_FPGA_ERROR = 0x0062,   STS_PROXY_BROADCAST_DROPPED = 0x0070, STS_ASC_RXOK = 0x0071, STS_ASC_DROPPED = 0x0072, STS_DMXNSCNONE = 0x0080,   STS_DMXNSCLOSS = 0x0081, STS_DMXNSCERROR = 0x0082, STS_DMXNSC_OK = 0x0083 }
enum	OpenLightingStatusIdType { STS_OLP_TESTING = 0x8000, STS_OLP_SELFTEST_PASSED = 0x8001, STS_OLP_SELFTEST_FAILED = 0x8002 }

Variables
static const uint16_t	SUBDEVICE_ROOT = 0u
	The root sub device.
static const uint16_t	SUBDEVICE_ALL = 0xffffu
	All sub devices.
static const uint16_t	SUBDEVICE_MAX = 0x0200u
	The maximum index for a sub device.
static const uint8_t	SUB_START_CODE = 0x01u
	The RDM Sub Start Code.
static const uint8_t	RDM_CHECKSUM_LENGTH = 2u
	The number of bytes in an RDM checksum.
static const uint8_t	MESSAGE_LENGTH_OFFSET = 2u
	The location of the message length field in a frame.
static const uint8_t	RDM_PARAM_DATA_LENGTH_OFFSET = 23u
	The location of the parameter data length in a frame.
static const uint8_t	RDM_PARAM_DATA_OFFSET = 24u
	The location of the parameter data in a frame.
static const uint16_t	RDM_VERSION = 0x0100u
	The RDM version we support.
static const uint16_t	MAX_DMX_START_ADDRESS = 512u
	The maximum value for a DMX start address.
static const uint16_t	INVALID_DMX_START_ADDRESS = 0xffffu
	The 'unpatched' DMX start address.
static const uint16_t	MUTE_MANAGED_PROXY_FLAG = 0x01
	Indicates the responder is a managed proxy.
static const uint16_t	MUTE_SUBDEVICE_FLAG = 0x02
	Indicates the responder has subdevices.
static const uint16_t	MUTE_BOOTLOADER_FLAG = 0x04
	Indicates the responder is in bootloader mode.
static const uint16_t	MUTE_PROXY_FLAG = 0x08
	Indicates the responder is a proxy.
static const uint8_t	ALL_SENSORS = 0xffu
	The all-sensors value.
static const uint16_t	SENSOR_VALUE_UNSUPPORTED = 0u
	Indicates that recorded / highest / lowest values aren't supported.
static const unsigned int	MAX_STATUS_MESSAGES_PER_FRAME = 21u
static const unsigned int	MAX_SLOT_INFO_PER_FRAME = 46u
static const unsigned int	MAX_DEFAULT_SLOT_VALUE_PER_FRAME = 77u
	The maximum number of default slot value entries in a RDM frame.
static const uint16_t	MAX_PIN_CODE = 9999u
	The maximum pin code from E1.37-1.
static const uint32_t	NO_DEFAULT_ROUTE = 0u
	Indicates no route is assigned.
static const uint32_t	IPV4_UNCONFIGURED = 0u
	Indicates no IP address is configured.
static const uint8_t	MAX_NETMASK = 32u
	The maximum netmask value.
