rdm_responder.h File Reference

Detailed Description

The base RDM Responder.

The base RDM Responder provides the common RDM handling code used by many of the responder models. This allows much of the responder's functionality to be specified with a declarative style, rather that reimplementing the PID handlers many times over.

It consists of a couple of parts:

• A ResponderDefinition, a static tree of data structures that describe how the responder should behave. This contains the responder's manufacturer id, model id, sensors definitions, personalities definitions, supported parameters list etc.
• the global RDMResponder g_responder object, which holds basic state like mute, identify etc.
• The PID dispatching mechanism, where we specify a table of function pointers as part of the responder definition and then later, when a RDM request arrives, RDMResponder_DispatchPID() is called which invokes the correct function. You can think of this like a vtable in C++.

When implementing a model, you can reference the PID functions in the dispatch table, or point to your own functions that (optionally) wrap the PID functions.

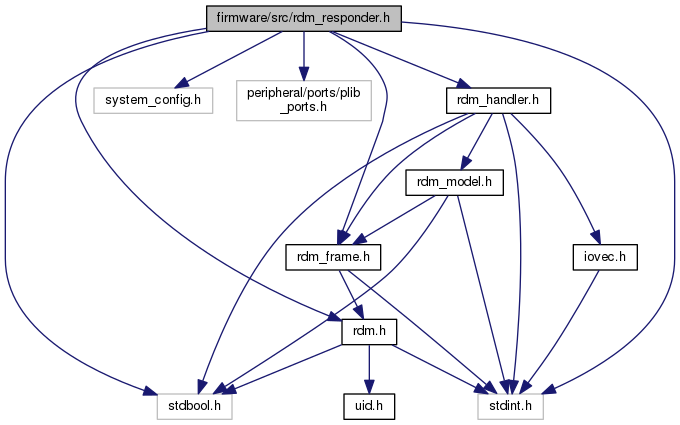

Include dependency graph for rdm_responder.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	ParameterDescription
	A parameter description. More...
struct	PIDDescriptor
	A descriptor for a PID. More...
struct	ProductDetailIds
	The Product Detail IDs for the responder. More...
struct	SlotDefinition
	The definition of a DMX slot. More...
struct	PersonalityDefinition
	The definition of a DMX512 personality. More...
struct	SensorDefinition
	An RDM sensor definition. More...
struct	SensorData
	Data for an RDM Sensor. More...
struct	ResponderDefinition
	The definition of a responder. More...
struct	RDMResponder
	A core implementation of a responder. More...
struct	RDMResponderSettings
	The settings to use for the RDM Responder. More...

Typedefs
typedef int(*	PIDCommandHandler )(const RDMHeader *incoming_header, const uint8_t *param_data)
	A PID handler. More...

Functions
void	RDMResponder_Initialize (const RDMResponderSettings *settings)
	Initialize an RDMResponder struct. More...
void	RDMResponder_Tasks ()
	Perform the periodic tasks. More...
void	RDMResponder_SwitchResponder (RDMResponder *responder)
	Switch the current responder. More...
void	RDMResponder_RestoreResponder ()
	Restore to the default responder.
void	RDMResponder_InitResponder ()
	Initialize the current responder with default values.
void	RDMResponder_ResetToFactoryDefaults ()
	Reset an RDMResponder to the factory defaults.
void	RDMResponder_GetUID (uint8_t *uid)
	Get the UID of the responder. More...
int	RDMResponder_HandleDUBRequest (const uint8_t *param_data, unsigned int param_data_length)
	Handle a Discovery-unique-branch request. More...
void	RDMResponder_BuildHeader (const RDMHeader *incoming_header, RDMResponseType response_type, RDMCommandClass command_class, uint16_t pid, unsigned int param_data_length)
	Build the RDM header in the output buffer. More...
int	RDMResponder_AddHeaderAndChecksum (const RDMHeader *incoming_header, RDMResponseType response_type, unsigned int message_length)
int	RDMResponder_HandleDiscovery (const RDMHeader *incoming_header, const uint8_t *param_data)
	Handle discovery commands. More...
int	RDMResponder_BuildSetAck (const RDMHeader *incoming_header)
	Build an RDM Set ACK with no param data. More...
int	RDMResponder_BuildNack (const RDMHeader *incoming_header, RDMNackReason reason)
	Build an RDM NACK. More...
int	RDMResponder_BuildAckTimer (const RDMHeader *incoming_header, uint16_t delay)
	Build an ACK TIMER. More...
int	RDMResponder_BuildParamDescription (const RDMHeader *incoming_header, uint16_t param_id, const ParameterDescription *description)
	Build a PARAMETER_DESCRIPTION response. More...
int	RDMResponder_DispatchPID (const RDMHeader *incoming_header, const uint8_t *param_data)
	Invoke a PID handler from the ResponderDefinition. More...
int	RDMResponder_Ioctl (ModelIoctl command, uint8_t *data, unsigned int length)
	A base Ioctl handler. More...
int	RDMResponder_GenericReturnString (const RDMHeader *incoming_header, const char *reply_string, unsigned int max_size)
	Build a response containing a string. More...
int	RDMResponder_GenericGetBool (const RDMHeader *incoming_header, bool value)
	Handle a request to get a bool value. More...
int	RDMResponder_GenericSetBool (const RDMHeader *incoming_header, const uint8_t *param_data, bool *value)
	Handle a request to set a bool value. More...
int	RDMResponder_GenericGetUInt8 (const RDMHeader *incoming_header, uint8_t value)
	Handle a request to get a uint8_t value. More...
int	RDMResponder_GenericSetUInt8 (const RDMHeader *incoming_header, const uint8_t *param_data, uint8_t *value)
	Handle a request to set a uint8_t value. More...
int	RDMResponder_GenericGetUInt16 (const RDMHeader *incoming_header, uint16_t value)
	Handle a request to get a uint16_t value. More...
int	RDMResponder_GenericSetUInt16 (const RDMHeader *incoming_header, const uint8_t *param_data, uint16_t *value)
	Handle a request to set a uint16_t value. More...
int	RDMResponder_GenericGetUInt32 (const RDMHeader *incoming_header, uint32_t value)
	Handle a request to get a uint32_t value. More...
int	RDMResponder_GenericSetUInt32 (const RDMHeader *incoming_header, const uint8_t *param_data, uint32_t *value)
	Handle a request to set a uint32_t value. More...
int	RDMResponder_SetMute (const RDMHeader *incoming_header)
	Handle a SET MUTE request. More...
int	RDMResponder_SetUnMute (const RDMHeader *incoming_header)
	Handle a SET UN_MUTE request. More...
int	RDMResponder_GetCommsStatus (const RDMHeader *incoming_header, const uint8_t *param_data)
	Handle a GET COMMS_STATUS request. More...
int	RDMResponder_SetCommsStatus (const RDMHeader *incoming_header, const uint8_t *param_data)
	Handle a SET COMMS_STATUS request. More...
int	RDMResponder_GetDeviceInfo (const RDMHeader *incoming_header, const uint8_t *param_data)
	Handle a GET DEVICE_INFO request. More...
int	RDMResponder_GetSupportedParameters (const RDMHeader *incoming_header, const uint8_t *param_data)
	Handle a SUPPORTED_PARAMETERS request. More...
int	RDMResponder_GetProductDetailIds (const RDMHeader *incoming_header, const uint8_t *param_data)
	Handle a GET PRODUCT_DETAIL_IDS request. More...
int	RDMResponder_GetDeviceModelDescription (const RDMHeader *incoming_header, const uint8_t *param_data)
	Handle a GET DEVICE_MODEL_DESCRIPTION request. More...
int	RDMResponder_GetManufacturerLabel (const RDMHeader *incoming_header, const uint8_t *param_data)
	Handle a GET MANUFACTURER_LABEL request. More...
int	RDMResponder_GetSoftwareVersionLabel (const RDMHeader *incoming_header, const uint8_t *param_data)
	Handle a GET SOFTWARE_VERSION_LABEL request. More...
int	RDMResponder_GetBootSoftwareVersion (const RDMHeader *incoming_header, const uint8_t *param_data)
	Handle a GET BOOT_SOFTWARE_VERSION request. More...
int	RDMResponder_GetBootSoftwareVersionLabel (const RDMHeader *incoming_header, const uint8_t *param_data)
	Handle a GET BOOT_SOFTWARE_LABEL request. More...
int	RDMResponder_GetDeviceLabel (const RDMHeader *incoming_header, const uint8_t *param_data)
	Handle a GET DEVICE_LABEL request. More...
int	RDMResponder_SetDeviceLabel (const RDMHeader *incoming_header, const uint8_t *param_data)
int	RDMResponder_GetDMXPersonality (const RDMHeader *incoming_header, const uint8_t *param_data)
	Handle a GET DMX_PERSONALITY request. More...
int	RDMResponder_SetDMXPersonality (const RDMHeader *incoming_header, const uint8_t *param_data)
	Handle a SET DMX_PERSONALITY request. More...
int	RDMResponder_GetDMXPersonalityDescription (const RDMHeader *incoming_header, const uint8_t *param_data)
	Handle a GET DMX_PERSONALITY_DESCRIPTION request. More...
int	RDMResponder_GetDMXStartAddress (const RDMHeader *incoming_header, const uint8_t *param_data)
	Handle a GET DMX_START_ADDRESS request. More...
int	RDMResponder_SetDMXStartAddress (const RDMHeader *incoming_header, const uint8_t *param_data)
	Handle a SET DMX_START_ADDRESS request. More...
int	RDMResponder_GetSlotInfo (const RDMHeader *incoming_header, const uint8_t *param_data)
	Handle a GET SLOT_INFO request. More...
int	RDMResponder_GetSlotDescription (const RDMHeader *incoming_header, const uint8_t *param_data)
	Handle a GET SLOT_DESCRIPTION request. More...
int	RDMResponder_GetDefaultSlotValue (const RDMHeader *incoming_header, const uint8_t *param_data)
	Handle a GET DEFAULT_SLOT_VALUE request. More...
int	RDMResponder_GetSensorDefinition (const RDMHeader *incoming_header, const uint8_t *param_data)
	Handle a GET SENSOR_DEFINITION request. More...
int	RDMResponder_GetSensorValue (const RDMHeader *incoming_header, const uint8_t *param_data)
	Handle a GET SENSOR_VALUE request. More...
int	RDMResponder_SetSensorValue (const RDMHeader *incoming_header, const uint8_t *param_data)
	Handle a SET SENSOR_VALUE request. More...
int	RDMResponder_SetRecordSensor (const RDMHeader *incoming_header, const uint8_t *param_data)
	Handle a SET RECORD_SENSOR request. More...
int	RDMResponder_GetIdentifyDevice (const RDMHeader *incoming_header, const uint8_t *param_data)
	Handle a GET IDENTIFY_DEVICE request. More...
int	RDMResponder_SetIdentifyDevice (const RDMHeader *incoming_header, const uint8_t *param_data)
	Handle a SET IDENTIFY_DEVICE request. More...

Variables
const char	MANUFACTURER_LABEL []
	The common MANUFACTURER_LABEL.
RDMResponder *	g_responder
	The global RDMResponder object.
static const int	RDM_RESPONDER_NO_RESPONSE = 0
	Indicates there is no response required for the request.
